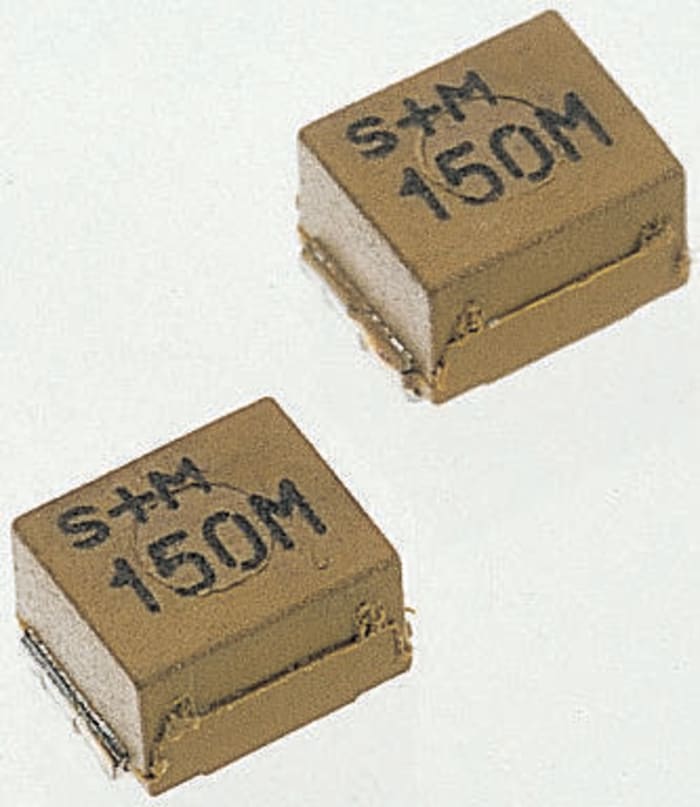

B82422A1472K100 This TDK B82422A1472K100 is a wirewound surface mount inductor with a ferrite core. It offers an inductance of 4.7µH and a maximum DC current of 150mA.
Mfr Part #:

B82422A1472K100

Available from 2 distributors
Mfr Name: EPCOS
EPCOS
This TDK B82422A1472K100 is a wirewound surface mount inductor with a ferrite core. It offers an inductance of 4.7µH and a maximum DC current of 150mA.
✓ Total Stock: 51,700 pcs
$ Price Range: $0.52

B82422A1472K100 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
50,000 pcs
On Request
50000 pcs On Request 1 On Request On Request 1202+ On Request On Request
Partservice ✓
Non-Authorised Inventory information
1,700 pcs
On Request
1700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B82422A1472K100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Depth
Height
Inductance
Length
Shielding
Termination Style
View Similar Products (0)

B82422A1472K100 Description

Short technical summary and product information.

The TDK B82422A1472K100 is a 1210-sized unshielded wirewound surface mount inductor featuring a ferrite core. It provides an inductance value of 4.7µH with a tolerance of ±10% and can handle a maximum DC current of 150mA.



This inductor is constructed using wirewound technology and is suitable for reflow soldering processes. It operates within a temperature range of -55°C to 125°C and has a maximum DC resistance of 2.2Ω. The component is AEC-Q200 qualified, indicating its suitability for automotive applications.



With a height of 2mm, depth of 2.5mm, and length of 3.2mm, this inductor is designed for surface mounting. It has a high resonance frequency and a high Q factor, making it suitable for various electronic circuits requiring efficient inductance.



Key electrical specifications include a maximum self-resonant frequency of 110MHz and a minimum quality factor of 27. The inductor is moulded and unshielded.

B82422A1472K100 Quick Information

Product Type: Wirewound Surface Mount Inductor
Series: B82422A*100
Canonical Name: TDK B82422A*100 Series 1210 Unshielded Wirewound Surface Mount Inductor
Subcategory: Surface Mount Inductor

B82422A1472K100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B82422A1472K100 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

B82422A1472K100 Features

  • Unshielded wirewound surface mount inductor.
  • 4.7µH inductance with ±10% tolerance.
  • Rated for 150mA maximum DC current.
  • AEC-Q200 automotive qualified.
  • 1210 package size for surface mounting.

B82422A1472K100 Applications

  • Suitable for reflow and wave soldering.
  • Used in automotive electronic circuits.
  • Ideal for signal filtering applications.
  • High Q factor for efficient performance.

B82422A1472K100 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the B82422A1472K100 inductor?

The inductance is 4.7µH.

What is the tolerance of the inductance?

The inductance tolerance is ±10%.

What is the maximum DC current rating?

The maximum DC current is 150mA.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What is the package type?

The package type is 1210.

Is this inductor AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified.
