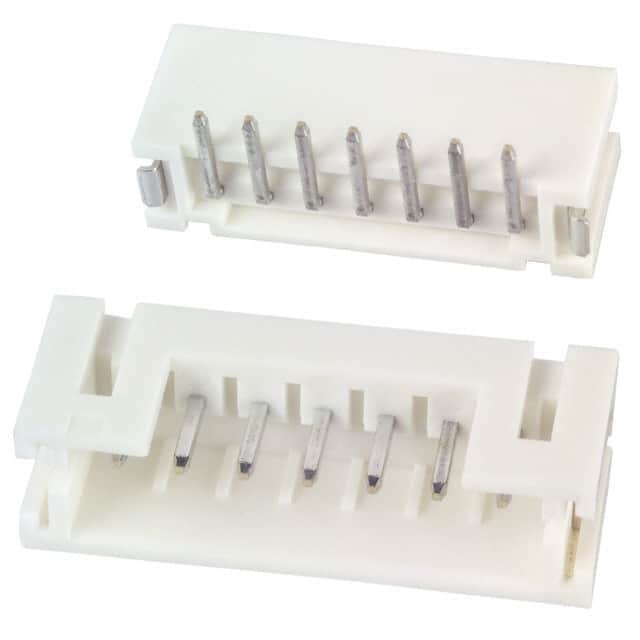

The JST B7B-PH-SM3-TB is a 7 position, single row shrouded header from the PH series. It features a 2.00mm pitch and is designed for board-to-cable/wire connections. The connector is fully shrouded with four walls to prevent improper mating and protect against flux and contaminants.
Electrical ratings include a current rating of 2A (AWG #24) and a voltage rating of 100V AC/DC. Contact resistance is 10 mΩ max initial and 20 mΩ max after environmental testing. Insulation resistance is 1,000 MΩ min, and withstanding voltage is 800V AC/minute. The operating temperature range is -25°C to +85°C.
The header uses a surface mount (SMT) configuration with solder termination and a solder retention feature to prevent floating during reflow. The housing is made of heat-resistant polyamide (PA46) with a UL94 V-0 flammability rating. Contacts are copper alloy with tin-lead finish.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.35 | $0.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions, all loaded in a single row.
2.00mm (0.079 inches).
2A AC/DC (AWG #24).
100V AC/DC.
Surface mount (SMT) with solder termination.
-25°C to +85°C.
Polyamide (PA46) housing with UL94 V-0 rating.
