| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Energy | |
| Maximum AC Volts | |
| Maximum DC Volts | |
| Medical Grade | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Package / Case | |
| Surge Current | |
| Tolerance | |
| Varistor Voltage | |
| Varistor Voltage (Max) | |
| Varistor Voltage (Min) | |
| Varistor Voltage (Typ) |

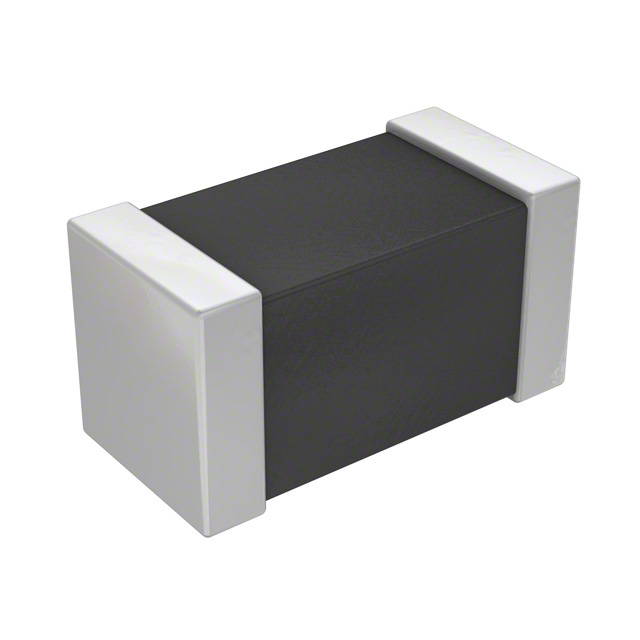

The B72530T0350K062 is a surface mount multilayer varistor (MLV) from TDK Electronics, designed for transient voltage suppression in electronic circuits. It features a typical varistor voltage of 56V with ±10% tolerance, and can handle maximum AC voltages of 35V and DC voltages of 45V.
This varistor offers a surge current rating of 250A (8/20 µs waveform) and an energy absorption capability of 2J. It has a typical capacitance of 600 pF at 1 kHz, making it suitable for ESD protection and overvoltage clamping in a variety of applications.
The component is housed in a 1210 (3225 Metric) SMD package and supports surface mount assembly. It operates over a wide temperature range from -55°C to 125°C, ensuring reliability in harsh environments. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.33 | $0.33 |
| 25+ | $0.30 | $0.30 |
| 100+ | $0.26 | $0.26 |
| 250+ | $0.24 | $0.24 |
| 500+ | $0.23 | $0.23 |
| 1,000+ | $0.22 | $0.22 |
| 2,000+ | $0.21 | $0.21 |
| 4,000+ | $0.20 | $0.20 |
| 6,000+ | $0.20 | $0.20 |
| 10,000+ | $0.20 | $0.20 |
| 14,000+ | $0.20 | $0.20 |
| 20,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The varistor voltage is 56V typical, with a range of 50.4V minimum to 61.6V maximum, and ±10% tolerance.
The maximum surge current is 250A for an 8/20 µs waveform.
The package is 1210 (3225 Metric) surface mount.
The operating temperature range is -55°C to 125°C.
Typical capacitance is 600 pF at 1 kHz.
The maximum energy absorption is 2 J.
It is listed as RoHS3 Compliant, but this status is unverified and should be confirmed with the manufacturer.
