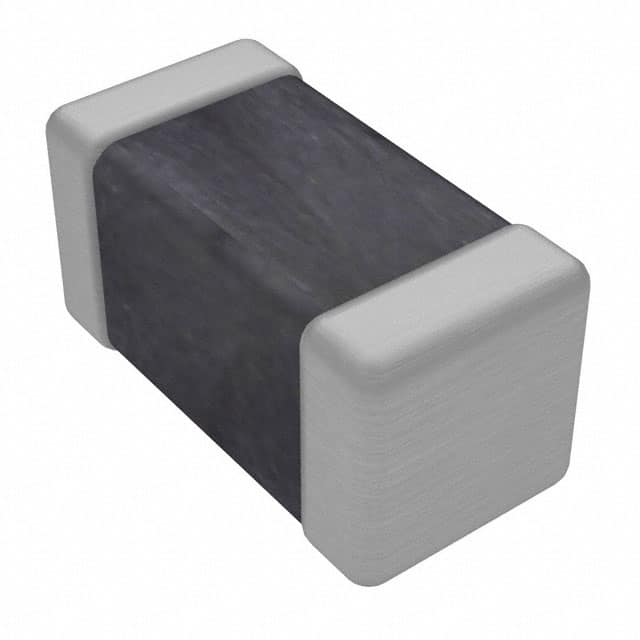

B72440P5040S560 Multilayer varistor from TDK with varistor voltage range 9V to 17V, surge current rating 1A, and 0201 surface mount package. Provides ESD protection up to 8kV contact and 15kV air discharge per IEC 61000-4-2.
Mfr Part #:

B72440P5040S560

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
Multilayer varistor from TDK with varistor voltage range 9V to 17V, surge current rating 1A, and 0201 surface mount package. Provides ESD protection up to 8kV contact and 15kV air discharge per IEC 61000-4-2.
✓ Total Stock: 97,420 pcs

B72440P5040S560 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
97,420 pcs
On Request
97420 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B72440P5040S560 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Frequency
Current
Maximum AC Volts
Maximum DC Volts
Mounting Type
Number of Circuits
Operating Temperature
Storage Temperature
Tape & Reel
Termination
Termination Style
Varistor Voltage (Max)
Varistor Voltage (Min)
View Similar Products (0)

B72440P5040S560 Description

Short technical summary and product information.

The B72440P5040S560 is a multilayer varistor (MLV) from TDK's low clamping voltage series. It is designed for ESD protection in sensitive electronic circuits. Key electrical specifications include a varistor voltage range of 9V to 17V, maximum surge current of 1A (8/20µs), and clamping voltage between 22V and 43V at 1A. The device offers ESD protection up to 8kV contact and 15kV air discharge per IEC 61000-4-2. It features low leakage current (<0.1µA at 3V) and fast response time (<0.5ns). The varistor is housed in a compact 0201 (0603 metric) surface mount package with nickel barrier termination (AgNiSn). It is RoHS-compatible and lead-free. Typical applications include ESD protection in smartphones, tablets, notebooks, navigation devices, and other portable electronics.

B72440P5040S560 Quick Information

Product Type: Varistor
Series: CT0201S4ACC2G
Canonical Name: TDK B72440P5040S560 Varistor
Subcategory: Multilayer Varistor

B72440P5040S560 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free

B72440P5040S560 Features

  • Varistor voltage range 9V to 17V.
  • Surge current rating of 1A (8/20µs).
  • ESD protection up to 8kV contact/15kV air.
  • Low clamping voltage from 22V to 43V.
  • Compact 0201 surface mount package.

B72440P5040S560 Applications

  • ESD protection for smartphone interfaces.
  • Protection for tablet and notebook ports.
  • Ideal for portable multimedia devices.
  • Used in digital cameras and game consoles.
  • Suitable for LED driver circuits.

B72440P5040S560 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the standoff voltage?

Maximum AC operating voltage is 4V RMS, maximum DC operating voltage is 5.5V.

What is the breakdown voltage?

Varistor voltage ranges from 9V (minimum) to 17V (maximum).

What is the clamping voltage?

Maximum clamping voltage is between 22V and 43V at 1A (8/20µs).

What is the peak pulse current?

Maximum surge current is 1A for an 8/20µs waveform.

What is the package?

0201 (0603 metric) surface mount package.

What is the capacitance?

Nominal capacitance is 15pF at 1MHz.

What is the ESD protection level?

8kV contact discharge and 15kV air discharge per IEC 61000-4-2.
