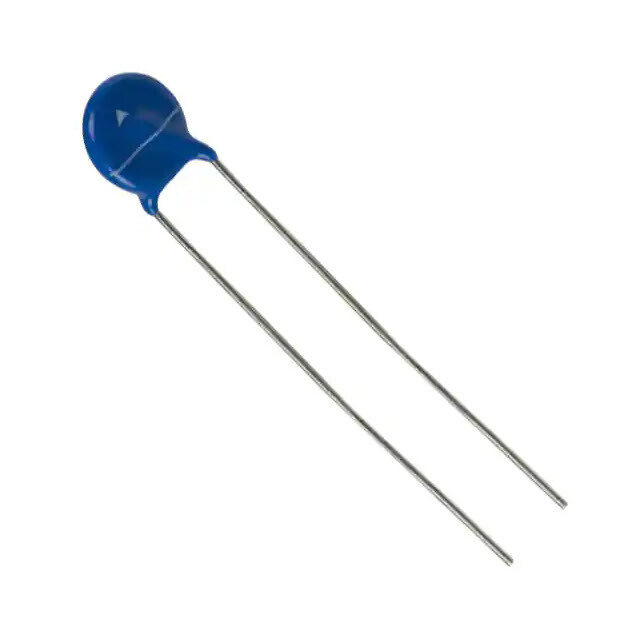

The EPCOS B72207S950K111 is a Metal Oxide Varistor (MOV) belonging to the TVS - Varistors, MOVs category. It is designed for circuit protection applications, offering a nominal voltage rating of 150V.
Key electrical specifications include a maximum AC voltage rating of 95V and a maximum DC voltage rating of 125V. The varistor has a clamping voltage of 250V and a clamping current of 10A. It can handle a maximum surge current of 1200A and has a capacitance value of 260pF. The operating temperature range is from -40°C to 85°C.
Mechanically, this component features a product diameter of 9mm, a depth of 3.4mm, and a height of 11mm, with a weight ranging from 0.4 to 1.1g. It is designed for through-hole mounting with radial leads and a terminal pitch of 5mm. The packaging is supplied on tape and reel.
This varistor is suitable for applications requiring protection against voltage transients and surges.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clamping voltage is 250V.
The maximum surge current rating is 1200A.
The varistor operates from -40°C to 85°C.
The nominal voltage rating is 150V.
The capacitance is 260pF.
The varistor uses through-hole mounting with radial leads.
The maximum AC voltage rating is 95V and the maximum DC voltage rating is 125V.
