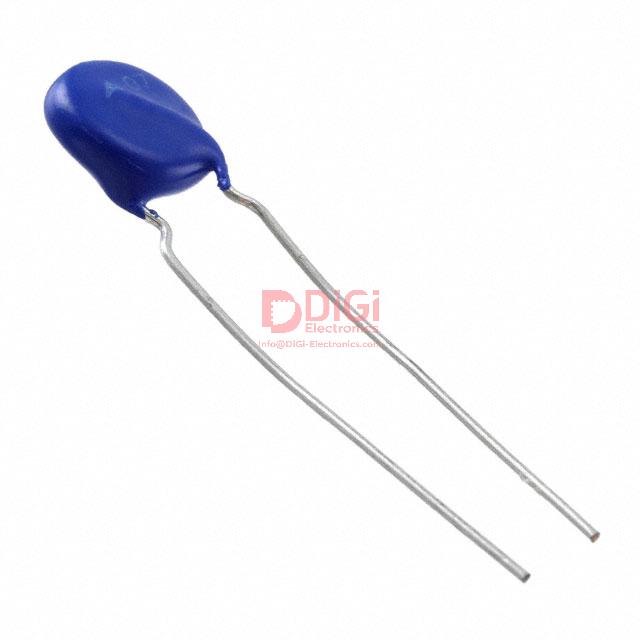

B72207S2231K101 The EPCOS B72207S2231K101 is a varistor designed for transient voltage suppression. It features a 360V typical varistor voltage and a 1.75kA surge current rating.
Mfr Part #:

B72207S2231K101

Available from 1 distributors
Mfr Name: EPCOS
EPCOS
The EPCOS B72207S2231K101 is a varistor designed for transient voltage suppression. It features a 360V typical varistor voltage and a 1.75kA surge current rating.
✓ Total Stock: 10,521 pcs
$ Price Range: $0.52

B72207S2231K101 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10,521 pcs
On Request
10521 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B72207S2231K101 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Energy
Industrial Grade
Maximum AC Volts
Maximum DC Volts
Medical Grade
Military Grade
Mounting Type
Number of Circuits
Operating Temperature
Storage Temperature
Tape & Reel
View Similar Products (0)

B72207S2231K101 Description

Short technical summary and product information.

The EPCOS B72207S2231K101 is a varistor belonging to the AdvanceD series, designed for transient voltage suppression applications. It operates with a maximum AC voltage of 230V and a maximum DC voltage of 300V, featuring a typical varistor voltage of 360V.



This component can handle a surge current of 1.75kA and has an energy rating of 23J. It includes one circuit and has a capacitance of 130pF at 1kHz. The operating temperature range is from -40°C to 105°C.



The varistor is mounted through-hole and comes in a 7mm disc package. It is suitable for applications requiring protection against voltage transients.



Key electrical specifications include a minimum varistor voltage of 324V and a maximum of 396V. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected, though these compliance details are unverified.

B72207S2231K101 Quick Information

Product Type: Varistor
Series: AdvanceD
Canonical Name: EPCOS B72207S2231K101 Varistor
Subcategory: MOV

B72207S2231K101 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B72207S2231K101 Estimated Pricing

Qty Low High
1+ $0.52 $0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

B72207S2231K101 Features

  • 360V typical varistor voltage rating.
  • 1.75kA surge current handling capability.
  • 23J energy absorption capacity.
  • Through-hole mounting for easy integration.
  • 7mm disc package size.

B72207S2231K101 Applications

  • Protects circuits from voltage transients.
  • Suitable for AC and DC power lines.
  • Used in general electronic equipment.
  • Component for surge protection circuits.

B72207S2231K101 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical varistor voltage of the B72207S2231K101?

The typical varistor voltage is 360V.

What is the surge current rating for this varistor?

The surge current rating is 1.75kA.

What is the energy rating of the B72207S2231K101?

The energy rating is 23J.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 105°C.

How is the B72207S2231K101 varistor mounted?

It is mounted using the through-hole method.

What is the package type for this varistor?

The package type is a 7mm disc.
