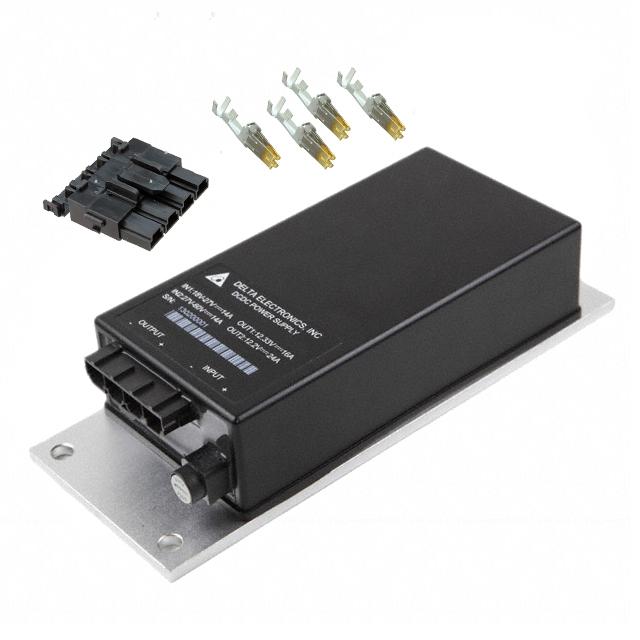

The Delta Electronics B70SR12424AC is an enclosed DC/DC converter designed for ITE (Commercial) applications. It offers a continuous input voltage range from 36V to 106V, with a maximum input voltage of 126V for short durations. The converter provides a single, regulated 12.4V DC output, capable of delivering up to 24A of current and a total power of 300W.
Key electrical specifications include a high efficiency of up to 90% and an isolation voltage of 2250VDC. Protections such as input UVLO, output OCL, short circuit, OVP, and OTP are integrated. The unit is designed for chassis mounting and has a box-type package with a metal base plate.
With dimensions of 190.0mm x 75.9mm x 43.9mm, it operates reliably within a wide temperature range of -40°C to +75°C. The converter also supports parallel connection of multiple units for increased power capacity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The continuous input voltage range is 36VDC to 106VDC.
The output voltage is 12.4V, and it can supply up to 24A of current.
The maximum output power is 300W.
The operating temperature range is -40°C to +75°C.
