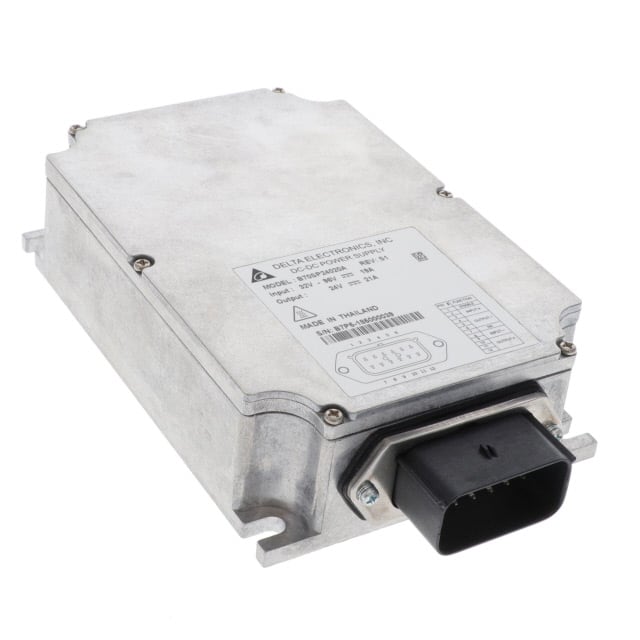

The Delta Electronics B70SP24020A is an enclosed DC/DC converter designed for demanding applications. It operates with a wide input voltage range of 32-96V and provides a regulated 24.5V output voltage, delivering up to 500W of power.
Key electrical specifications include a high efficiency of up to 91.5% at full load, 2250VDC isolation, and comprehensive protection features such as input UVLO, output OCL, short circuit protection, OVP, and OTP. The converter also includes input reverse polarity protection and minimized inrush current.
This DC/DC converter is housed in a box-type package suitable for chassis mounting. It operates reliably within a temperature range of -40°C to +90°C. The unit meets IP67 protection standards, indicating resistance to dust and water immersion when fully assembled with its mating connector.
Compliance includes CE marking and adherence to standards like IEC/EN/UL60950-1 and IEC/EN/UL62368-1. EMC compatibility is ensured with EN12895-2015, EN55011, EN55014-2, and CISPR11 Class A.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The continuous input voltage range is 32-96 VDC.
The output voltage is 24.5V for the A code and 23.5V to 25.6V for the B code, depending on load conditions.
The converter provides a maximum output power of 500W.
The operating temperature range is -40°C to +90°C.
The dimensions are 198.0mm x 113.0mm x 45.0mm.
Yes, it includes input reverse polarity protection, input UVLO, output OCL, short circuit protection, OVP, and OTP.
The converter has an IP67 protection rating.
