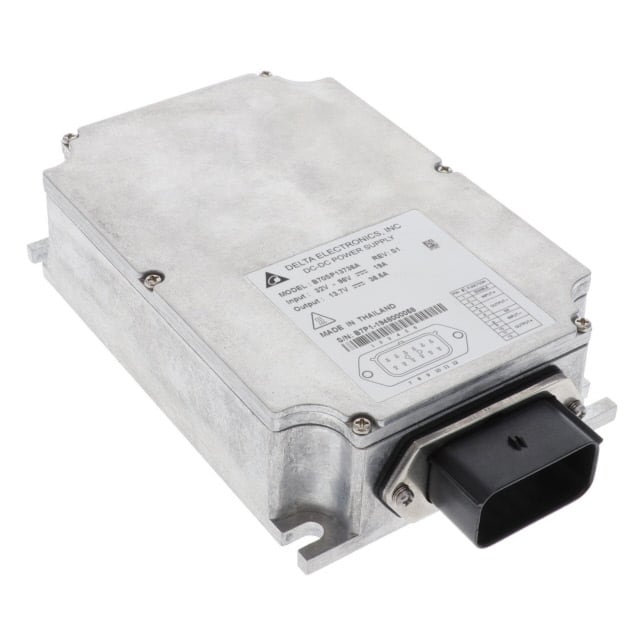

The Delta Electronics B70SP13736A is an enclosed DC/DC converter designed for demanding applications. It provides a 500W output with a nominal voltage of 13.7V and a maximum current of 36.5A for the A code variant.
This converter boasts a wide input voltage range of 32V to 96V, making it versatile for various power systems. It offers high efficiency up to 89.5% at full load. Protection features include input UVLO, output OCL, short circuit protection, OVP, OTP, and input reverse polarity protection.
The unit is housed in a box-type package with a metal base plate, suitable for chassis mounting. Its dimensions are 198.0mm x 113.0mm x 45.0mm. The operating temperature range is -40°C to +90°C, with derating.
Compliance includes CE marking and EMC compatibility standards. The converter also features IP67 protection, indicating resistance to dust and water ingress.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage for the A code variant is 13.7V.
The maximum output current for the A code variant is 36.5A.
The continuous input voltage range is from 32VDC to 96VDC.
The operating temperature range is -40°C to +90°C, with derating.
The dimensions are 198.0mm in length, 113.0mm in width, and 45.0mm in height.
Yes, it includes output over-voltage protection (OVP).
The converter has an IP67 protection rating.
