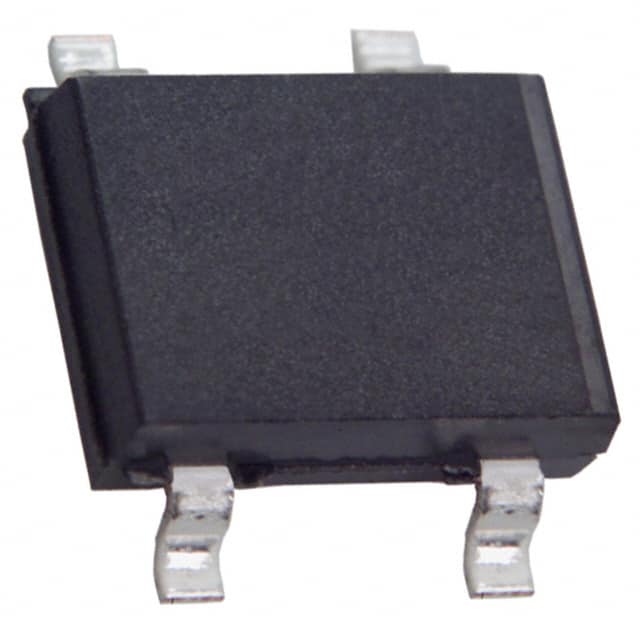

The PANJIT B6S_R2_00001 is a mini surface mount glass passivated single-phase bridge rectifier designed for AC to DC conversion. It features a maximum recurrent peak reverse voltage of 600V, a maximum RMS input voltage of 420V, and a maximum DC blocking voltage of 600V. The average forward current is 0.8A at 25°C ambient, with a peak forward surge current rating of 35A (8.3ms half sine-wave). Forward voltage drop is typically 1.0V at 0.5A per bridge element, and reverse leakage current is 5µA at 25°C. The device is housed in a compact 4-SMD gull wing package (supplier device package 4-MDI), suitable for surface mount assembly. It operates over a junction temperature range of -55°C to +150°C, with a thermal resistance (junction to ambient) of 85°C/W when mounted on a standard PCB. The product is lead-free and RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
| 10+ | $0.22 | $0.22 |
| 100+ | $0.14 | $0.14 |
| 500+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 3,000+ | $0.08 | $0.08 |
| 6,000+ | $0.07 | $0.07 |
| 9,000+ | $0.07 | $0.07 |
| 15,000+ | $0.06 | $0.06 |
| 21,000+ | $0.06 | $0.06 |
| 30,000+ | $0.06 | $0.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage is 600V.
The maximum average forward current is 0.8A at 25°C ambient temperature.
The maximum forward voltage drop per bridge element at 0.5A is 1.0V.
It uses a 4-SMD gull wing package (supplier device package 4-MDI).
The operating junction temperature range is -55°C to +150°C.
The peak forward surge current is 35A for an 8.3ms single half sine-wave.
