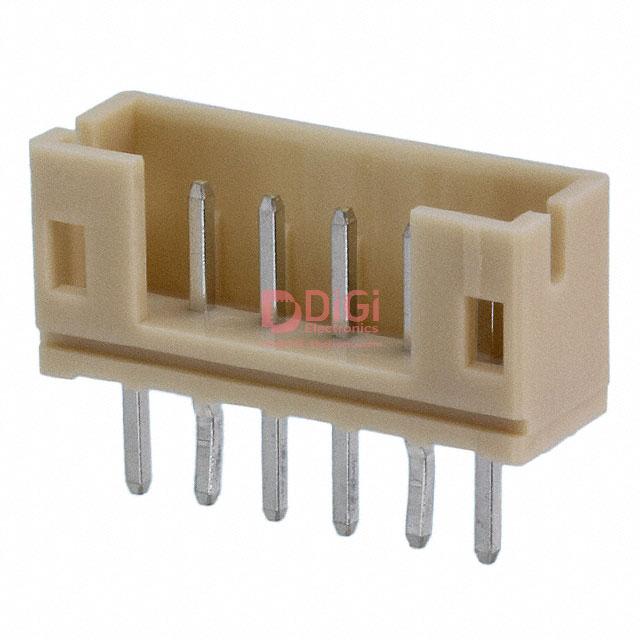

B6BPHK The JST B6BPHK is a wire to board connector header with 6 positions and a 2.00mm pitch. It features through hole mounting and a tin contact finish.
Mfr Part #:

B6BPHK

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
The JST B6BPHK is a wire to board connector header with 6 positions and a 2.00mm pitch. It features through hole mounting and a tin contact finish.
✓ Total Stock: 800 pcs
$ Price Range: $0.15

B6BPHK Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B6BPHK Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Length - Mating
Contact Length - Post
Contact Material
Contact Shape
Contact Type
Current Rating
Failure Rate
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Mated Stacking Heights
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch - Mating
Shielding
Style
Termination
Voltage
View Similar Products (0)

B6BPHK Description

Short technical summary and product information.

This JST B6BPHK connector header is designed for wire to board applications. It offers 6 positions with a 2.00mm mating pitch, providing a compact solution for board-to-wire connections.



The header features a through hole mounting style for secure PCB attachment and a detent lock for reliable mating. The male pin contacts are made of brass with a tin surface finish, ensuring good conductivity. The insulation material is Polyamide (PA66) or Nylon 6/6, rated UL94 V-0 for flammability.



With a current rating of 2A and a voltage rating of 100V, this connector is suitable for various electronic circuits. The operating temperature range is -25°C to 85°C. The series is PH, and the product status is active.



Key specifications include a 3.30mm contact length for mating, a 3.40mm post length, and a total contact length of 8.45mm. The insulation height is 6.00mm, and the mated stacking height is 8mm. The connector is shrouded with 4 walls for protection.

B6BPHK Quick Information

Product Type: Connector Header
Series: PH
Canonical Name: JST B6B-PH-K Connector Header, 6 Positions, 2.00mm Pitch, Through Hole
Subcategory: Wire to Board Connectors

B6BPHK Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B6BPHK Estimated Pricing

Qty Low High
1+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

B6BPHK Features

  • 6-position wire to board connector header.
  • 2.00mm mating pitch for compact designs.
  • Through hole mounting for secure PCB connection.
  • Brass male pin contacts with tin plating.
  • Rated for 2A current and 100V voltage.

B6BPHK Applications

  • Used in wire-to-board interconnections.
  • Suitable for consumer electronics.
  • Ideal for compact PCB designs.
  • Common in industrial control systems.

B6BPHK FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the B6B-PH-K have?

6 positions.

What is the pitch of the B6B-PH-K?

2.00mm.

What is the current rating of the B6B-PH-K?

2A.

What is the voltage rating of the B6B-PH-K?

100V.

What is the mounting type for the B6B-PH-K?

Through hole.

What is the operating temperature range?

-25°C to 85°C.

What is the insulation material?

Polyamide (PA66), Nylon 6/6.
