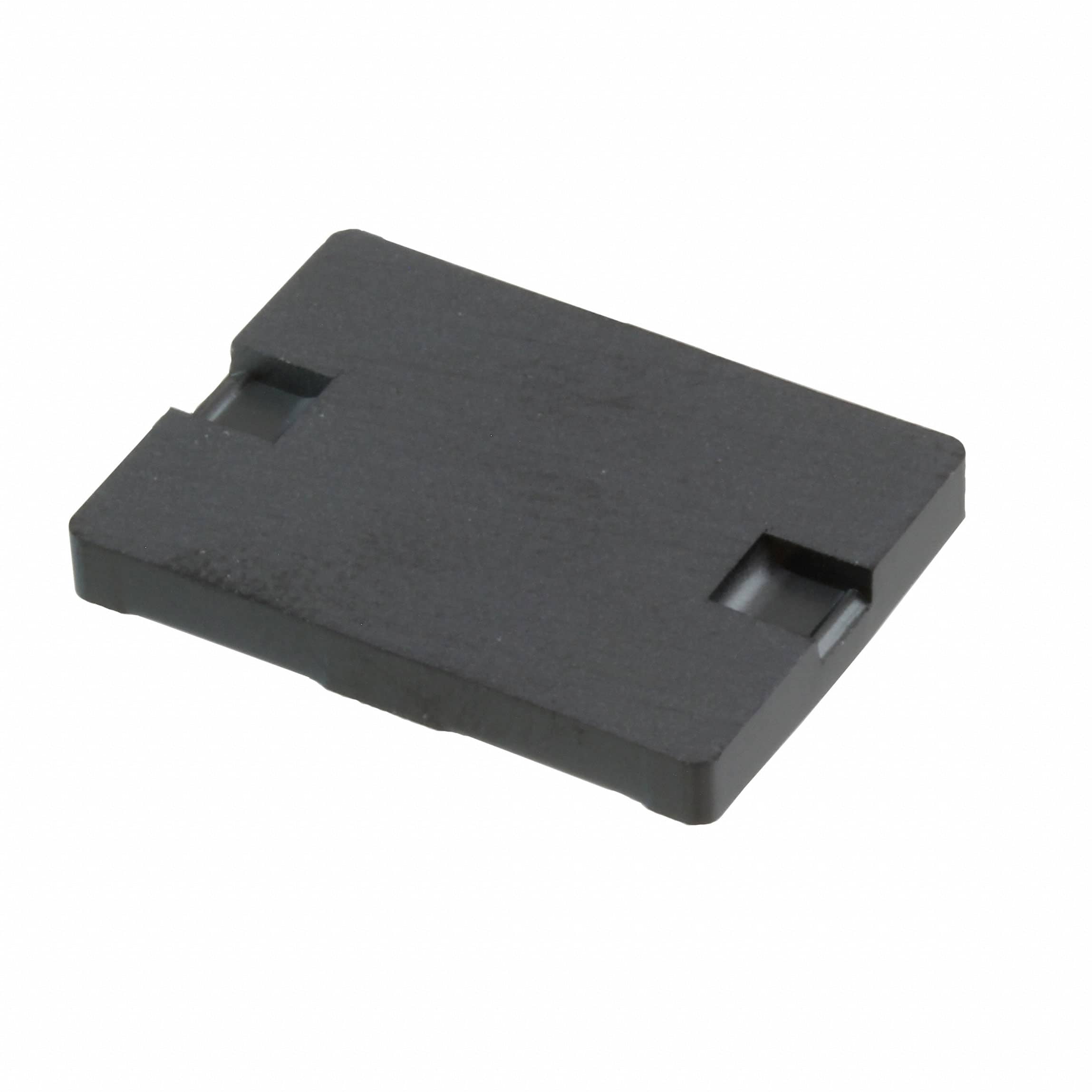

This TDK Corporation B66285P0000X187 is an I Type ferrite core, manufactured using the N87 material. It is designed with specific dimensions: a length of 21.80mm, a width of 15.80mm, and a height of 2.50mm. The core is ungapped and uncoated.
Key magnetic characteristics include an effective volume (Ve) of 2050 mm³, an effective area (Ae) of 78.5 mm², and an effective length (le) of 26.1 mm. The sum of length over area (Σ l/A) is 0.33 mm⁻¹. The nominal AL value for the N87 material is 5200 nH, with a maximum power loss (PV) of 1.25 W/set under specified conditions (200 mT, 100 kHz, 100 °C).
This component is suitable for applications requiring specific magnetic properties and dimensions. The ungapped nature and material choice are critical for its performance in transformer and inductor designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TDK Corporation B66285P0000X187 ferrite core is made with N87 material.
The B66285P0000X187 ferrite core has a length of 21.80mm, a width of 15.80mm, and a height of 2.50mm.
The nominal AL value for the N87 material in this core is 5200 nH.
The power loss (PV) is less than 1.25 W/set at 200 mT, 100 kHz, and 100 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The REACH status is REACH Unaffected.
