Mfr Part #:

B65811J0000R030

Name: B65811J0000R030
Brand: TDK Electronics
SKU: B65811J0000R030

Mfr Name: TDK Electronics

Description:

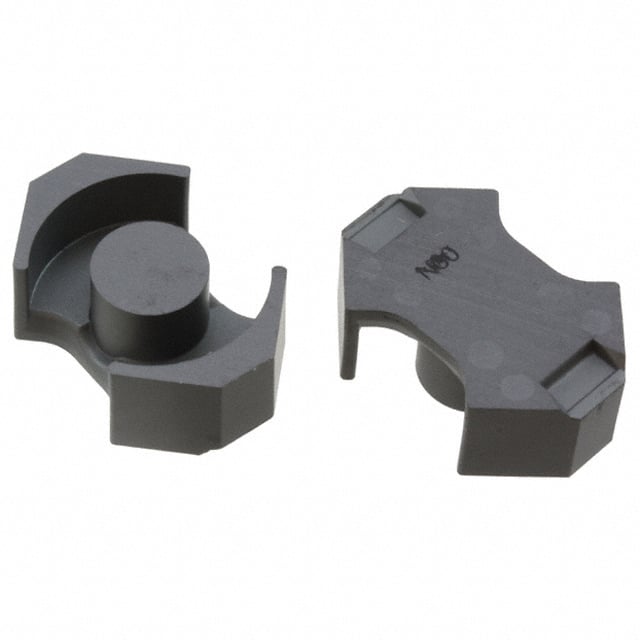

FERRITE CORE RM 5.7UH N30 2PCS

Stock on Request

B65811J0000R030 Description

Short technical summary and product information.

FERRITE CORE RM 5.7UH N30 2PCS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Electronics
Core Type	RM
Effective Area (Ae) mm²	64
Effective Length (le) mm	38
Effective Magnetic Volume (Ve) mm³	2430
Effective Permeability (µe)	2690
Finish	Uncoated
Gap	Ungapped
Height	0.324" (8.25mm)
Inductance Factor (Al)	5.7 µH
Initial Permeability (µi)	4300
Length	0.913" (23.20mm)
Material	N30
Minimum Core Cross Section (Amin) mm²	55
Supplier Device Package	RM 8
Tolerance	-20%, +30%
Width	0.433" (11.00mm)
