Mfr Part #:

B65684A0000R087

Name: B65684A0000R087
Brand: TDK Electronics
SKU: B65684A0000R087

Mfr Name: TDK Electronics

Description:

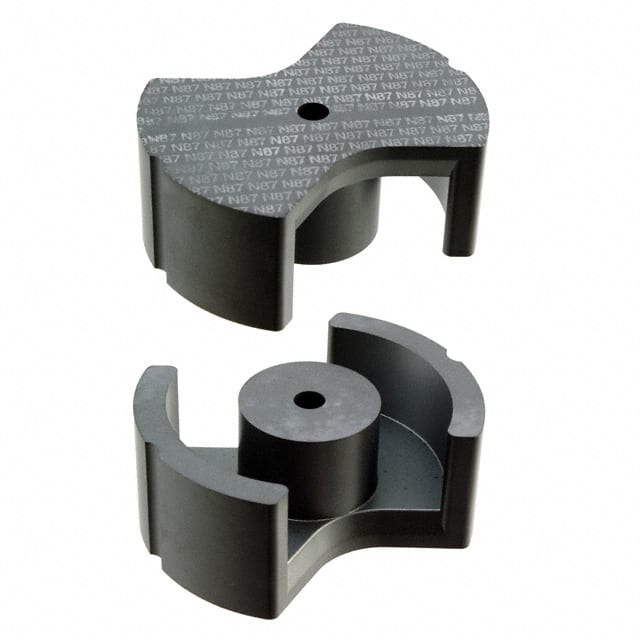

FERRITE CORE PM 9.2UH N87 2PCS

Stock on Request

B65684A0000R087 Description

Short technical summary and product information.

FERRITE CORE PM 9.2UH N87 2PCS

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Electronics
Core Type	PM
Diameter	2.441" (62.00mm)
Effective Area (Ae) mm²	570
Effective Length (le) mm	109
Effective Magnetic Volume (Ve) mm³	62000
Effective Permeability (µe)	1400
Finish	Uncoated
Gap	Ungapped
Height	0.965" (24.50mm)
Inductance Factor (Al)	9.2 µH
Initial Permeability (µi)	2200
Material	N87
Minimum Core Cross Section (Amin) mm²	470
Supplier Device Package	PM 62 x 49
Tolerance	-20%, +30%
