Mfr Part #:

B64290P0037X001

Name: B64290P0037X001
Brand: TDK Electronics
SKU: B64290P0037X001

Mfr Name: TDK Electronics

Description:

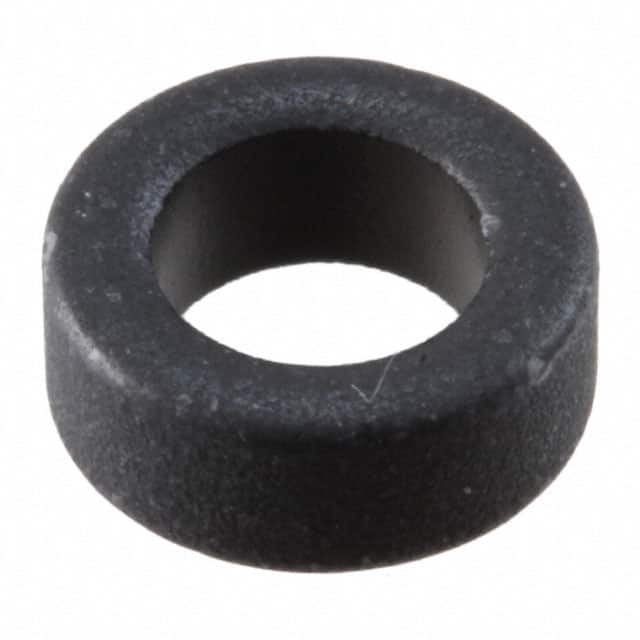

FERRITE CORE TOROID 20NH K1

Stock on Request

B64290P0037X001 Description

Short technical summary and product information.

FERRITE CORE TOROID 20NH K1

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Electronics
Core Type	Toroid
Diameter	0.249" (6.32mm)
Effective Area (Ae) mm²	3.06
Effective Length (le) mm	15.21
Effective Magnetic Volume (Ve) mm³	46.5
Finish	Parylene
Gap	Ungapped
Height	0.099" (2.52mm)
Inductance Factor (Al)	20 nH
Initial Permeability (µi)	80
Material	K1
Tolerance	±25%
