Mfr Part #:

B64290L0659X037

Name: B64290L0659X037
Brand: TDK Electronics
SKU: B64290L0659X037

Mfr Name: TDK Electronics

Description:

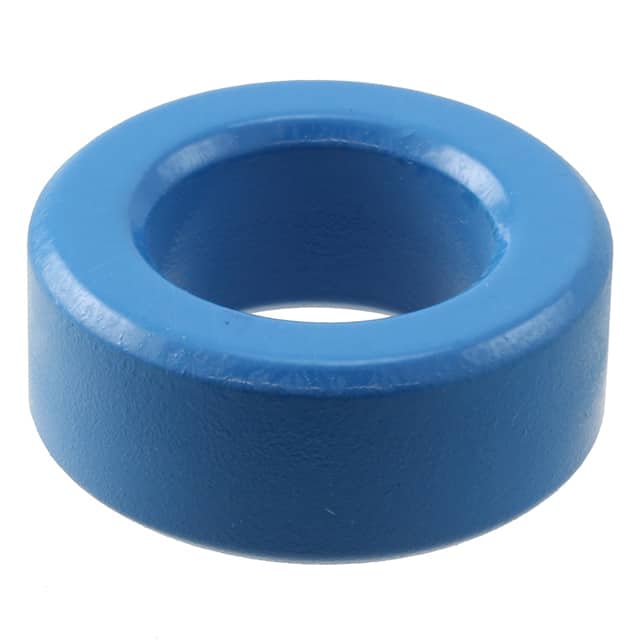

FERRITE CORE TOROID 9.8UH T37

Stock on Request

B64290L0659X037 Description

Short technical summary and product information.

FERRITE CORE TOROID 9.8UH T37

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Electronics
Core Type	Toroid
Diameter	1.646" (41.80mm)
Effective Area (Ae) mm²	125.3
Effective Length (le) mm	96.29
Effective Magnetic Volume (Ve) mm³	12070
Finish	Epoxy
Gap	Ungapped
Height	0.677" (17.20mm)
Inductance Factor (Al)	9.8 µH
Initial Permeability (µi)	6000
Material	T37
Minimum Core Cross Section (Amin) mm²	125.3
Tolerance	±25%
