Mfr Part #:

B62152A0008X001

Name: B62152A0008X001
Brand: TDK Electronics
SKU: B62152A0008X001

Mfr Name: TDK Electronics

Description:

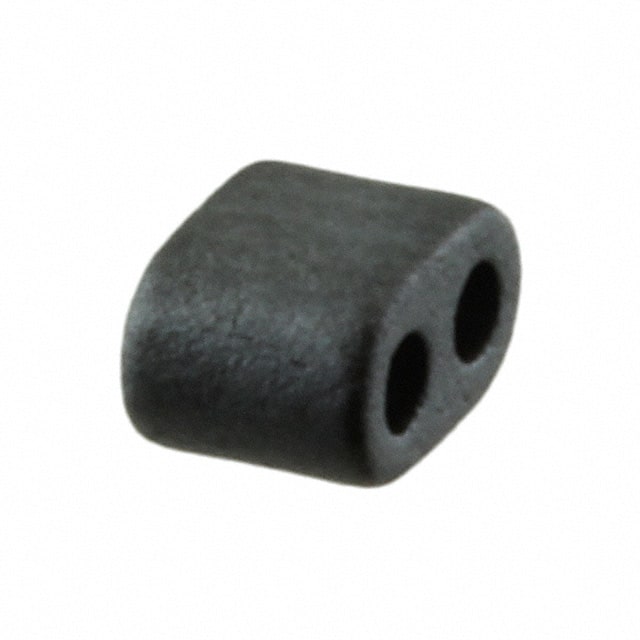

FERRITE CORE 2 HOLE 60NH K1

Stock on Request

B62152A0008X001 Description

Short technical summary and product information.

FERRITE CORE 2 HOLE 60NH K1

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Electronics
Core Type	Multi-Hole (2)
Effective Area (Ae) mm²	2.1
Effective Length (le) mm	3.7
Effective Magnetic Volume (Ve) mm³	7.8
Finish	Uncoated
Gap	Ungapped
Height	0.098" (2.50mm)
Inductance Factor (Al)	60 nH
Initial Permeability (µi)	80
Length	0.142" (3.60mm)
Material	K1
Tolerance	±30%
Width	0.083" (2.10mm)
