Mfr Part #:

B62152A0007X030

Name: B62152A0007X030
Brand: TDK Corporation
SKU: B62152A0007X030

Mfr Name: TDK Corporation

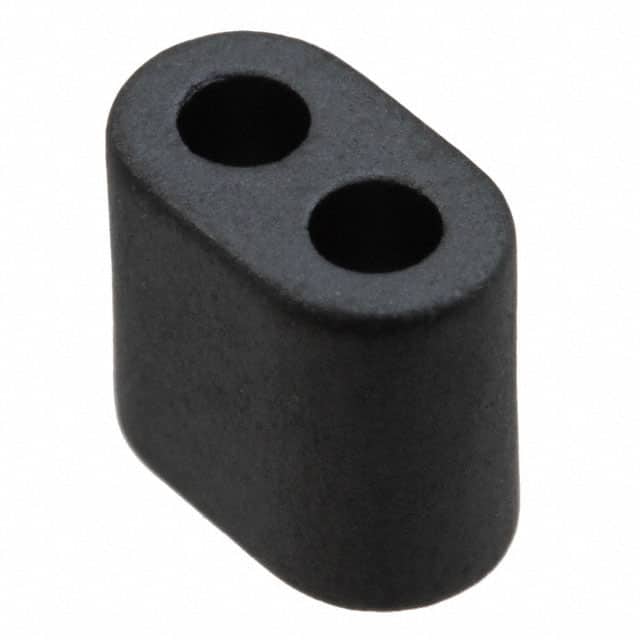

FERRITE CORE 2 HOLE 7.3UH N30

Stock on Request

B62152A0007X030 Description

Short technical summary and product information.

FERRITE CORE 2 HOLE 7.3UH N30

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Ferrite Cores
Manufacturer Name	TDK Corporation
Core Type	Multi-Hole (2)
Effective Area (Ae) mm²	10.2
Effective Length (le) mm	7.6
Effective Magnetic Volume (Ve) mm³	78
Finish	Uncoated
Gap	Ungapped
Height	0.244" (6.20mm)
Inductance Factor (Al)	7.3 µH
Initial Permeability (µi)	4300
Length	0.285" (7.25mm)
Material	N30
Tolerance	±30%
Width	0.165" (4.20mm)
