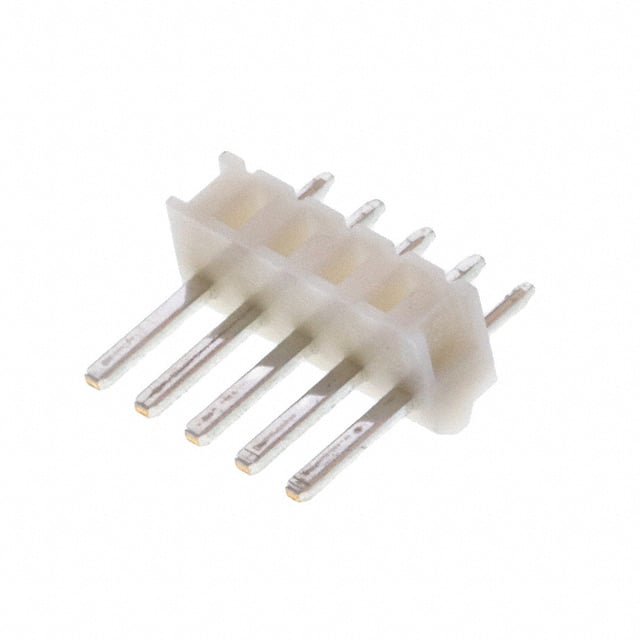

The JST B5P-SHF-1AA(LF)(SN) is a 5-position, single-row, through-hole header designed for board-to-cable/wire connections. It features a 2.50mm pitch and male square pins with tin-plated brass contacts. The header is unshrouded with a friction lock fastening type for secure mating.
Rated for 3A current and 250V voltage, it operates over a temperature range of -25°C to 85°C. The insulation is made of polyamide (PA66/Nylon 6/6) with a natural color and UL94 V-0 flammability rating. Contact resistance is 20mΩ initial and 30mΩ after environmental tests, with insulation resistance of 1000MΩ minimum and withstanding voltage of 1500V.
This header is suitable for wire sizes AWG 22 to AWG 28 and is designed for a PCB thickness of 1.6mm. It is RoHS3 compliant and has an MSL of 1 (unlimited).
The pitch is 2.50mm.
It has 5 positions in a single row.
The current rating is 3A.
The voltage rating is 250V.
