| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,023 pcs
|
100023 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

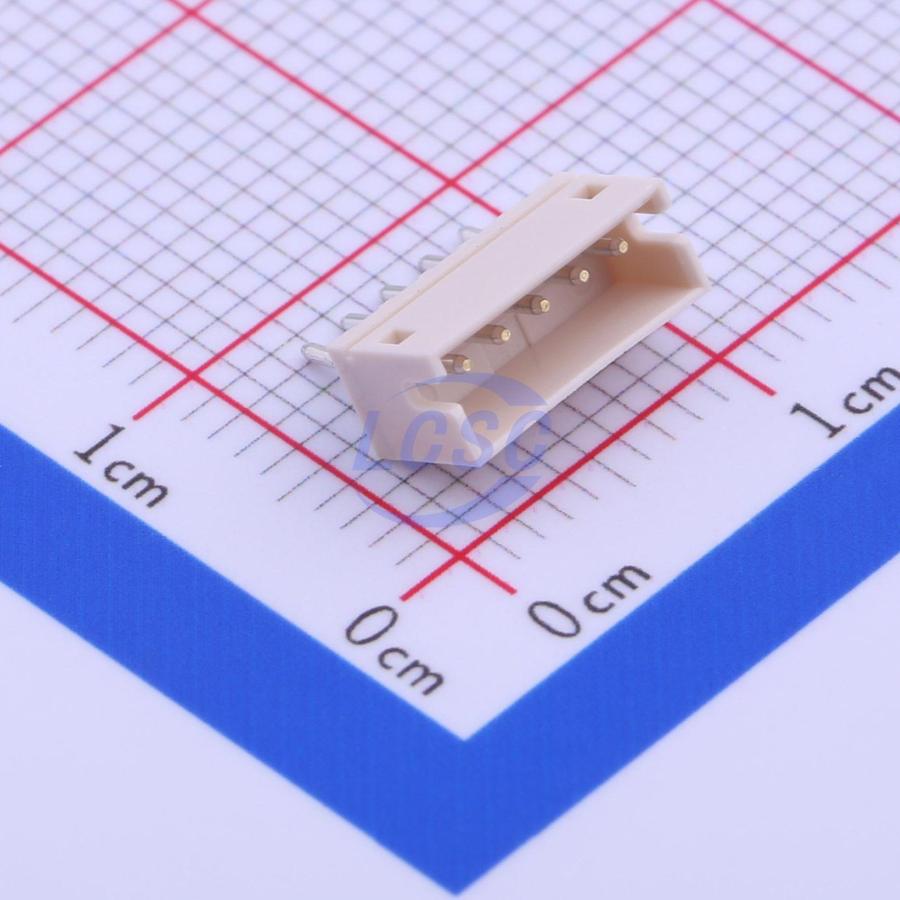

The JST B5B-ZR-3.4(LF)(SN) is a 5-position, single-row header designed for board-to-cable/wire connections. It features a 1.5mm pitch, making it suitable for compact electronic assemblies. The connector is fully shrouded with a 4-wall housing, providing robust protection and secure mating.
Electrical ratings include a current rating of 1A and a voltage rating of 50V. The contacts are made of brass with a tin finish, ensuring reliable conductivity and solderability. The insulation material is glass-filled PA66 (Nylon 6/6) in a natural color, with a UL94 V-0 flammability rating.
The header is through-hole mounted with solder termination, offering a stable mechanical connection. The operating temperature range is -25°C to 85°C. A detent lock fastening type ensures secure retention with mating connectors.
It has 5 positions, all loaded.
The pitch is 1.50mm.
The current rating is 1A.
The voltage rating is 50V.
Through hole mounting with solder termination.
-25°C to 85°C.
Tin finish on brass contacts.
