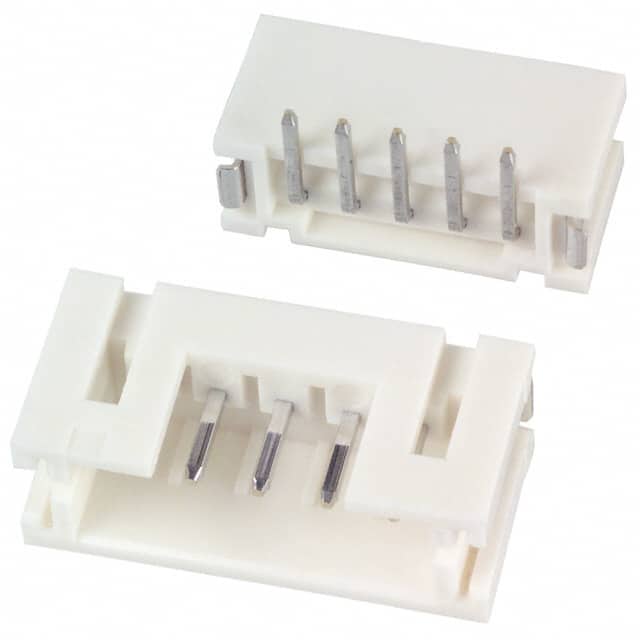

The JST B5B-PH-SM3-TB is a 5-position, single row, shrouded header connector from the PH series. It features a 2.00mm pitch and is designed for board-to-cable/wire applications. The connector has a square pin male contact type with copper alloy material and tin-lead contact finish.
Electrical ratings include a current rating of 2A and voltage rating of 100V. The operating temperature range is -25°C to 85°C. The insulation material is Polyamide (PA46) with a UL94 V-0 flammability rating, and the insulation color is natural.
The header is surface mount (SMD) with solder termination and includes solder retention features. It has a shrouded 4-wall design with detent lock fastening. The contact length is 3.30mm and insulation height is 6.60mm. All 5 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.29 | $0.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 positions.
2.00mm.
2A.
100V.
Surface mount.
-25°C to 85°C.
Tin-Lead.
