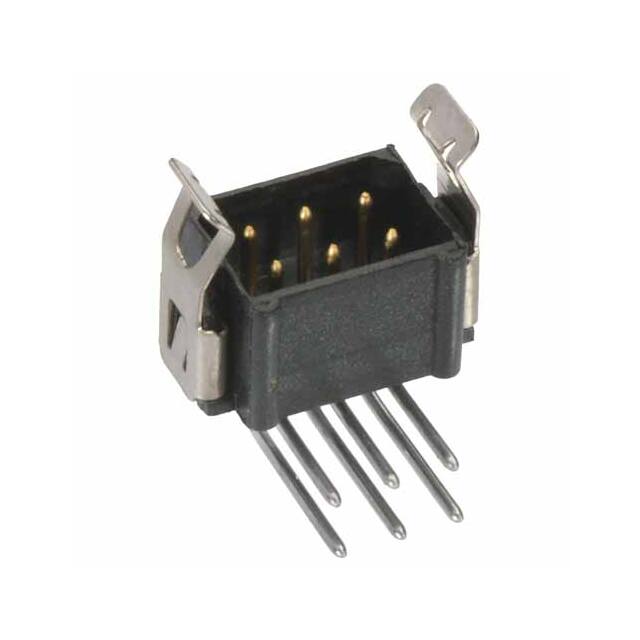

This B5743-212-M-L-1 is a 12-position (6+6) dual-in-line (DIL) male plug header from Harwin's Datamate L-Tek series. It features a right-angle through-hole mounting with 3.00mm solder terminations, a 2.00mm pitch and 2.00mm row spacing. The connector is shrouded on all four walls and includes locking latches for secure mating, requiring tooling for separation. Strain relief clips are provided to enhance cable retention.
Electrical specifications include a current rating of 2.2A per contact and a voltage rating of 120VAC/DC. The contacts are made of phosphor bronze with a gold over tin-lead plating (29.5µin thickness), ensuring reliable conductivity and corrosion resistance. The housing is black glass-filled polyester with UL94 V-0 flammability rating, suitable for high-temperature applications. Operating temperature range is -55°C to 125°C.
This connector is designed for board-to-board or cable-to-board applications requiring a compact, high-density interconnect. The right-angle orientation allows for low-profile PCB mounting. The latch lock mechanism provides secure connection in vibration-prone environments. The 2.00mm pitch is common in industrial and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 528+ | $8.86 | $8.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions (6+6 dual row).
2.00mm.
2.2A per contact.
120VAC/DC.
Through hole, right angle.
-55°C to 125°C.
Tin-lead over gold (29.5µin).
