| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
703 pcs
|
703 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Wire Gauge | |
| Wire Type |
The Harwin B5740-220-F-C-2 is a 20 position (10+10) female receptacle connector from the Datamate L-Tek series. It features a 2.00mm pitch and 2 rows, with a free hanging (in-line) mounting style. The connector uses a locking ramp fastening type for secure mating with compatible male plug connectors with latches.

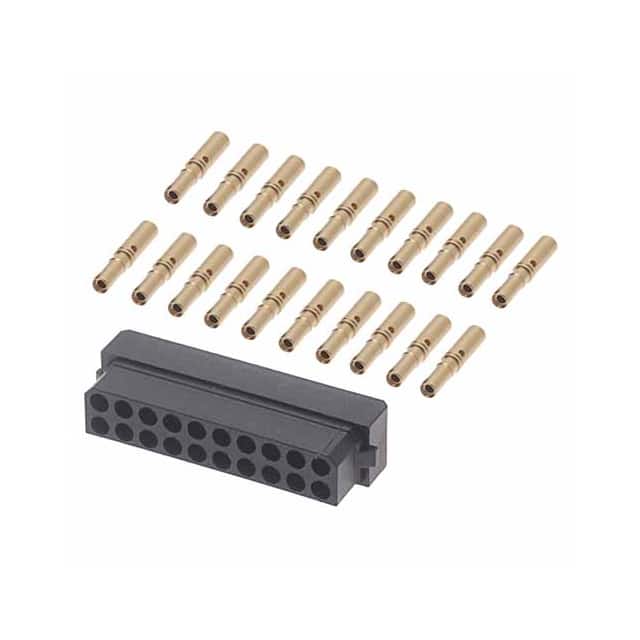

This connector kit includes a double row straight cable housing and 20 straight signal contacts. The contacts are female sockets with gold finish (11.8µin thickness) for reliable electrical performance. The cable termination is crimp, suitable for 24-28 AWG discrete wires.
The connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is designed for applications requiring a compact, high-density interconnect solution. The black housing and gold contacts provide durability and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.09 | $20.09 |
| 10+ | $17.08 | $17.08 |
| 25+ | $16.01 | $16.01 |
| 50+ | $15.24 | $15.24 |
| 100+ | $14.52 | $14.52 |
| 250+ | $13.61 | $13.61 |
| 500+ | $12.96 | $12.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions (10+10).
2.00mm.
Free hanging (in-line).
24-28 AWG discrete wires.
Gold with 11.8µin thickness.
Locking ramp.
Yes, RoHS3 compliant (unverified).
