| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
130 pcs
|
130 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Gender | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

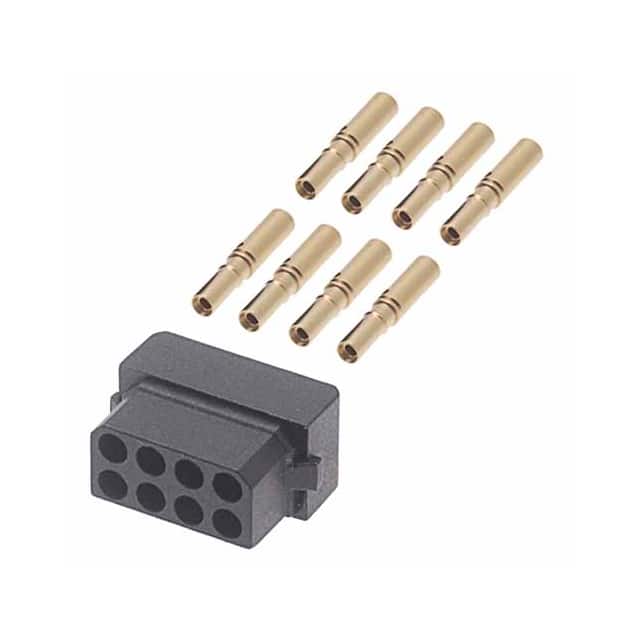

The Harwin B5740-208-F-C-2 is a 4+4 position (8 total) female receptacle connector from the Datamate L-Tek series. It is a complete cable connector kit comprising a double-row straight cable housing and 8 signal contacts. The connector has a 2.00mm pitch with 2.00mm row spacing, making it suitable for compact wire-to-wire applications. It accepts 24-28 AWG discrete wires using crimp termination, and features a locking ramp fastening mechanism for secure mating with male plug connectors equipped with latches.
This free-hanging (in-line) connector has gold-plated contacts with a 0.30µm gold finish thickness for reliable signal integrity. The housing is black, and the contacts are female. The connector is listed as RoHS3 compliant and REACH unaffected, though these compliance claims have low confidence and should be verified for critical applications.
The connector is designed for cable-to-cable or cable-to-board connections requiring a secure locking system. The Datamate L-Tek series is known for high reliability. For full electrical and mechanical ratings, consult the official manufacturer documentation.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.84 | $11.84 |
| 10+ | $10.06 | $10.06 |
| 25+ | $9.43 | $9.43 |
| 50+ | $8.98 | $8.98 |
| 100+ | $8.55 | $8.55 |
| 250+ | $8.02 | $8.02 |
| 500+ | $7.63 | $7.63 |
| 1,000+ | $7.27 | $7.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions, arranged as 4+4 (dual in-line).
The pitch is 2.00mm (0.079 inches), with the same row spacing.
It is a free hanging (in-line) connector, designed for cable mounting.
It accepts 24-28 AWG discrete wires.
Crimp termination.
Gold finish with 0.30µm thickness.
2 rows.
