| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

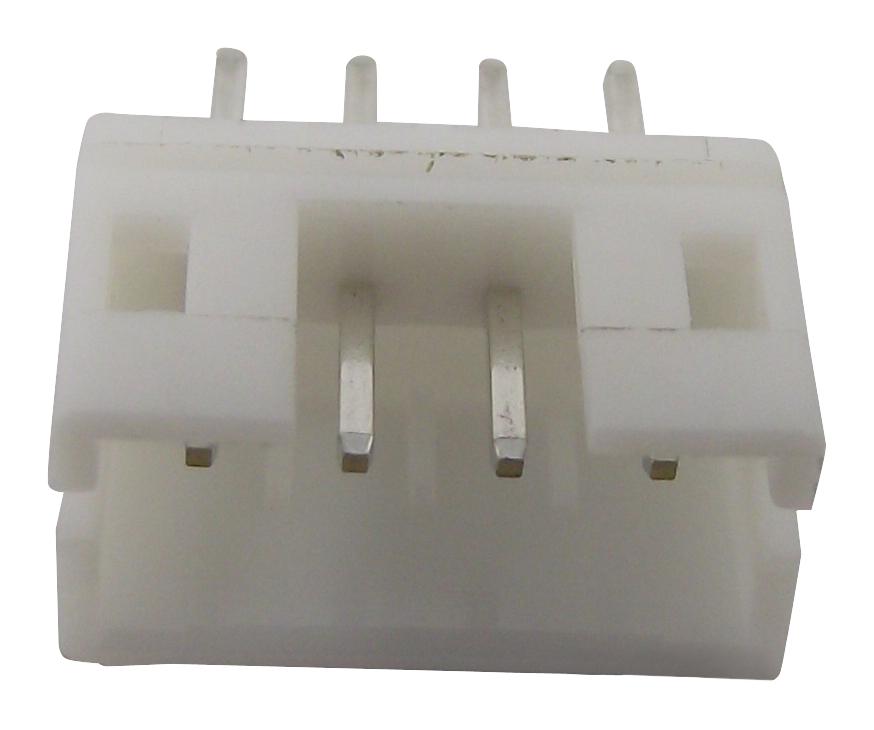

The B4B-PH-KL(LF)(SN) is a 4-position, single row, shrouded header connector from JST Manufacturing designed for board-to-cable/wire applications. It features a 2.00mm pitch and square male pin contacts made of copper alloy with a tin contact finish. The connector uses a through-hole mounting style with both press-fit and solder termination options, making it suitable for reliable PCB integration.
This header operates over a temperature range of -25°C to 85°C and is rated for 2A of current and 100V of voltage. The insulator is molded from gray Polyamide (PA66) Nylon 6/6 material with a UL94 V-0 flammability rating. A detent lock fastening type ensures secure mating with corresponding housings.
The shrouded 4-wall design provides pin protection and alignment during mating, ideal for compact electronic assemblies. The 6.00mm insulation height and 3.40mm contact length accommodate standard wire-to-board connections in space-constrained environments.
The pitch (center-to-center spacing) is 2.00mm (0.079 inches).
It has 4 positions in a single row.
The current rating is 2A and the voltage rating is 100V.
It uses through-hole mounting with press-fit and solder termination.
RoHS compliance is indicated as RoHS3 Compliant, but this has not been independently verified.
