| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

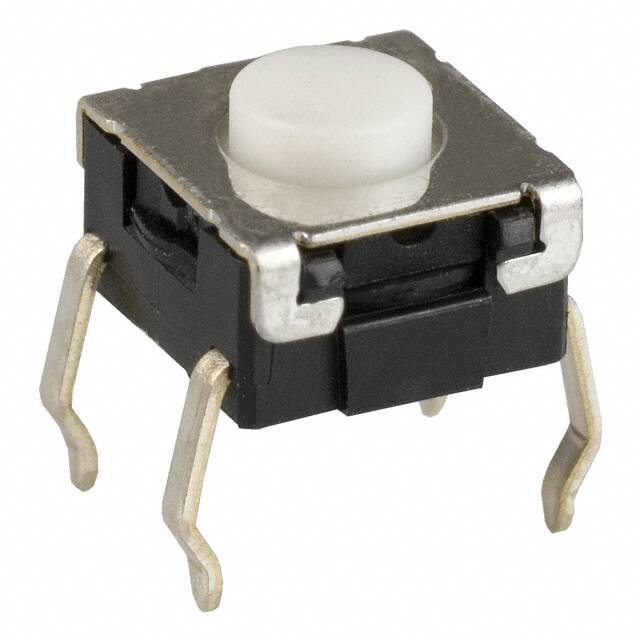

The Omron B3W-1000 is a tactile switch designed for various electronic applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, suitable for simple switching functions.
This switch is rated for a contact rating of 0.05A at 24VDC, making it appropriate for low-power applications. The operating force required is 160gf, and it is designed with a standard top-actuated actuator.
Mounting is achieved via Through Hole termination, and the switch has an outline dimension of 6.60mm x 6.00mm with an actuator height of 4.30mm off the PCB. It offers an ingress protection rating of IP67, providing dust-tight and waterproof capabilities. The operating temperature range is from -25°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 70°C.
The contact rating is 0.05A at 24VDC.
The switch is mounted using the Through Hole method.
The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).
No, the switch is Non-Illuminated.
The ingress protection rating is IP67 - Dust Tight, Waterproof.
