| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,310 pcs
|
2310 pcs | On Request | 1 | On Request | On Request | 10/15/2010 | On Request | On Request | |
|
158 pcs
|
158 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

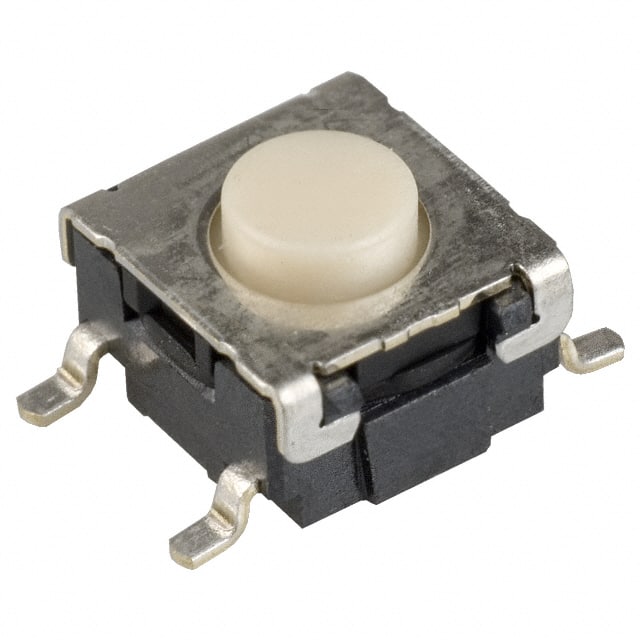

The Omron B3S-1000 is a tactile switch designed for various applications requiring reliable momentary contact. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration.
This switch is rated for a maximum of 0.05A at 24VDC, making it suitable for low-power electronic circuits. The operating force is 160gf, and the actuator is top-actuated with a standard type. The switch has an actuator height of 4.30mm off the PCB and an outline dimension of 6.60mm x 6.00mm.
Designed for ease of integration into modern electronic assemblies, the B3S-1000 utilizes a surface mount mounting type with gull wing termination. It operates within a temperature range of -25°C to 70°C. The switch is sealed to IP67 standards, providing protection against dust and water ingress, and has a Moisture Sensitivity Level (MSL) of 1.
Key features include its sealed construction, robust operating temperature range, and durable gull wing termination. The RoHS3 compliance status indicates adherence to environmental regulations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron B3S-1000 has a SPST-NO circuit.
The switch is rated for 0.05A at 24VDC.
The operating force is 160gf.
The switch is designed for surface mount.
The operating temperature range is -25°C to 70°C.
Yes, it has an IP67 rating for dust tight and waterproof protection.
