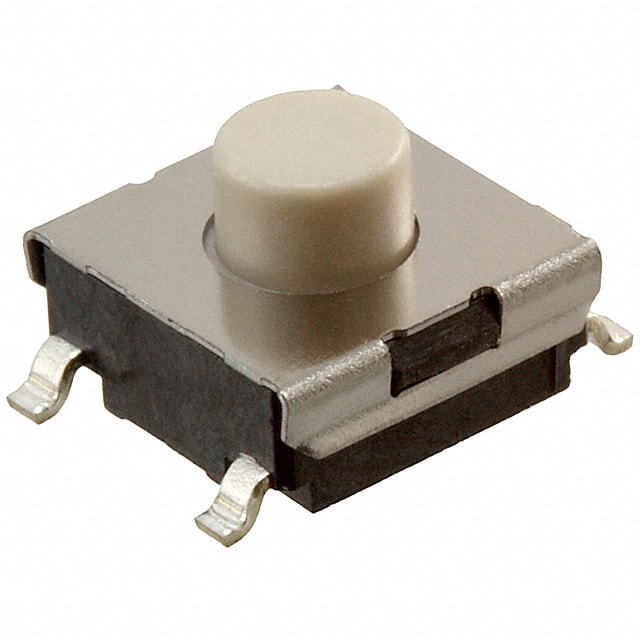

B3FS-1012 The Omron B3FS-1012 is a tactile switch with a SPST-NO circuit configuration. It features a surface mount design and top actuation.
Mfr Part #:

B3FS-1012

Available from 1 distributors
Mfr Name: Omron
Omron
The Omron B3FS-1012 is a tactile switch with a SPST-NO circuit configuration. It features a surface mount design and top actuation.
Stock on Request
$ Price Range: $0.75

B3FS-1012 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B3FS-1012 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Height off PCB, Vertical
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Storage Temperature
Switch Function
Tape & Reel
Termination Style
View Similar Products (0)

B3FS-1012 Description

Short technical summary and product information.

The Omron B3FS-1012 is a tactile switch designed for surface mount applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit and is top actuated.



Key electrical specifications include a contact rating of 0.05A at 24VDC and an operating force of 150gf. The switch operates within a temperature range of -25°C to 70°C.



Mechanically, the B3FS-1012 has a gull wing termination style and an actuator height of 4.30mm off the PCB. Its outline dimensions are 6.30mm x 6.00mm. This component is non-illuminated.



This tactile switch is suitable for various electronic designs requiring a reliable momentary switch action. Its surface mount capability allows for automated assembly processes.

B3FS-1012 Quick Information

Product Type: Tactile Switch
Series: B3FS
Canonical Name: B3FS-1012 Tactile Switch
Subcategory: Tactile Switch

B3FS-1012 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B3FS-1012 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

B3FS-1012 Features

  • SPST-NO tactile switch.
  • Surface mount with gull wing termination.
  • 0.05A @ 24VDC contact rating.
  • Top actuated standard actuator type.
  • Operating temperature range -25°C to 70°C.

B3FS-1012 Applications

  • Ideal for momentary switch functions.
  • Suitable for automated PCB assembly.
  • Used in compact electronic devices.
  • General purpose interface control.

B3FS-1012 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the B3FS-1012 tactile switch?

-25°C to 70°C

What is the mounting type of the Omron B3FS-1012?

Surface Mount

What is the contact rating for the B3FS-1012 tactile switch?

0.05A @ 24VDC

What is the operating force required for the B3FS-1012 switch?

150gf

What is the circuit configuration of the B3FS-1012 tactile switch?

SPST-NO

Is the Omron B3FS-1012 illuminated?

Non-Illuminated
