| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,920 pcs
|
2920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,900 pcs
|
2900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

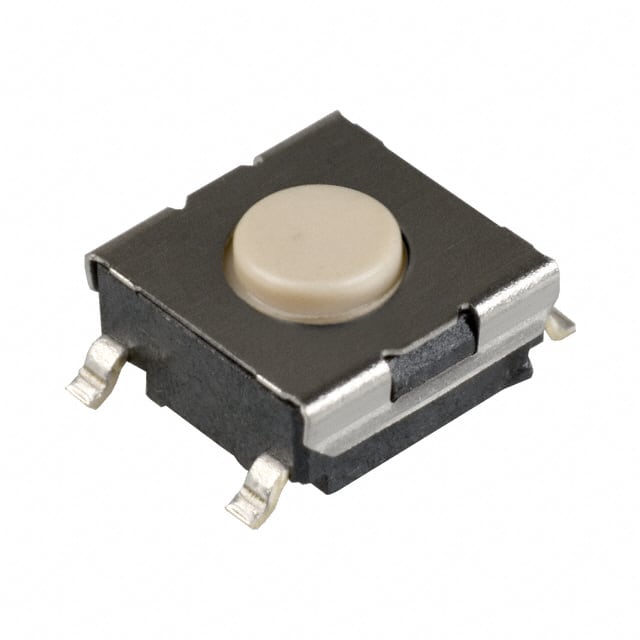

The Omron B3FS-1002P is a tactile switch designed for surface mount applications. It features a standard actuator type with a height of 3.10mm off the PCB and a top-actuated orientation. The switch operates with a force of 150gf and has a gull wing termination style.
This tactile switch has a SPST-NO circuit configuration and is rated for 0.05A at 24VDC. It is non-illuminated and operates within a temperature range of -25°C to 70°C. The dimensions of the switch are 6.30mm x 6.00mm.
The B3FS-1002P is suitable for various electronic designs requiring a reliable tactile switching solution. Its surface mount capability and compact outline make it versatile for different PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to 70°C
Surface Mount
0.05A @ 24VDC
RoHS3 Compliant
1 Unlimited
