| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,878 pcs
|
5878 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,050 pcs
|
5050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

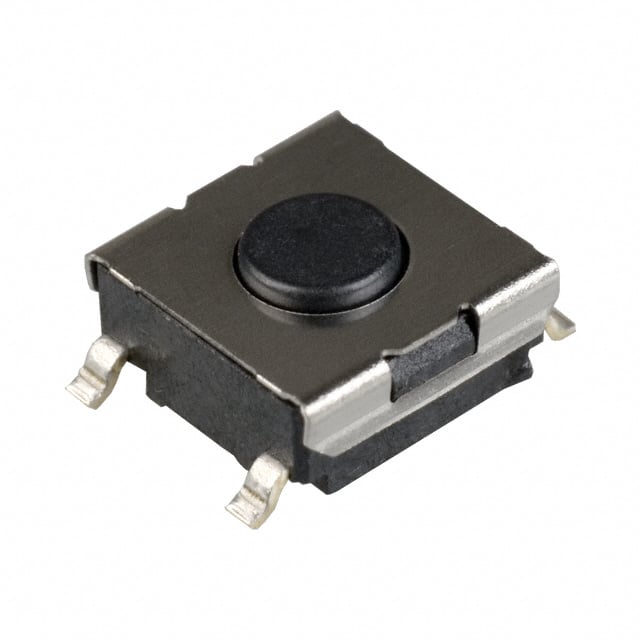

The Omron B3FS-1000P is a tactile switch designed for surface mount applications. It features a standard actuator type with a height of 3.10mm off the PCB and a top-actuated orientation. The switch operates with a single-pole, single-throw, normally open (SPST-NO) circuit configuration and has a contact rating of 0.05A at 24VDC. Its dimensions are 6.30mm x 6.00mm, and it is non-illuminated. The operating force is 100gf, and the termination style is Gull Wing. This switch is suitable for applications requiring a reliable momentary action.
Environmental specifications include an operating temperature range of -25°C to 70°C and a Moisture Sensitivity Level (MSL) of 1. The RoHS status is compliant with RoHS3, and the REACH status is unaffected. The B3FS-1000P is part of the B3fs series from Omron, offering a compact solution for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to 70°C
0.05A @ 24VDC
Gull Wing
No, it is Non-Illuminated.
RoHS3 Compliant
