| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 1004 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Tape & Reel | |
| Termination Style |

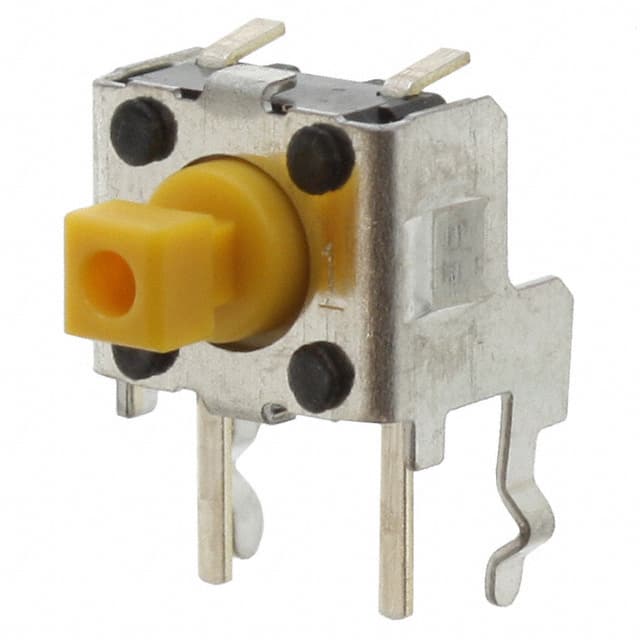

The Omron B3F-3152 is a tactile switch designed for various applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and a contact rating of 0.05A at 24VDC.
This switch has a nominal operating force of 150gf and an actuator type of Plunger for Cap, with a side-actuated orientation. The termination style is PC Pin, suitable for through-hole mounting at a right angle. Its outline dimensions are 7.30mm x 6.25mm, with an actuator length of 6.15mm for right-angle applications.
The operating temperature range for the B3F-3152 is -25°C to 70°C. It is a non-illuminated switch and includes a grounding pin for enhanced functionality. The switch is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
This component is ideal for designs requiring a reliable tactile switching solution with specific mechanical and electrical characteristics. Its through-hole, right-angle mounting makes it suitable for PCB assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.05A at 24VDC.
It has a SPST-NO (Single Pole Single Throw Normally Open) circuit.
The operating temperature range is -25°C to 70°C.
It is mounted Through Hole at a Right Angle.
Yes, it is RoHS3 Compliant.
