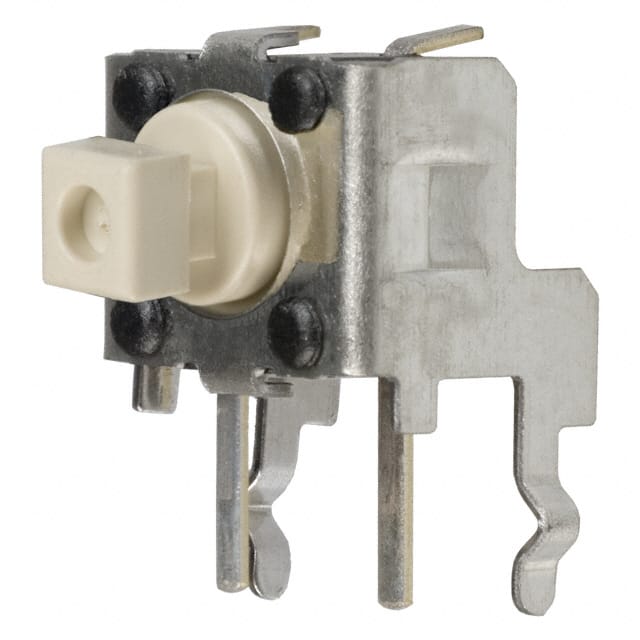

B3F-3150 The Omron B3F-3150 is a tactile switch with a SPST-NO circuit, rated for 0.05A at 24VDC. It features a grounding pin and Through Hole mounting.
Mfr Part #:

B3F-3150

Available from 4 distributors
Mfr Name: Omron
Omron
The Omron B3F-3150 is a tactile switch with a SPST-NO circuit, rated for 0.05A at 24VDC. It features a grounding pin and Through Hole mounting.
✓ Total Stock: 12,901 pcs
$ Price Range: $0.75

B3F-3150 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
12,039 pcs
On Request
12039 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
Fe Components ✓
Non-Authorised Inventory information
544 pcs
On Request
544 pcs On Request 100 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B3F-3150 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length, Right Angle
Actuator Orientation
Actuator Type
Circuit
Contact Rating @ Voltage
Features
Illumination
Mounting Type
Operating Force
Operating Temperature
Outline
Switch Function
Termination Style
View Similar Products (0)

B3F-3150 Description

Short technical summary and product information.

The Omron B3F-3150 is a tactile switch designed for various electronic applications. It features a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration and is rated for a contact current of 0.05A at 24VDC.



This switch has a Through Hole, Right Angle mounting type and a PC Pin termination style. The actuator is designed for a cap with a plunger, offering side actuation. It operates within a temperature range of -25°C to 70°C and requires an operating force of 100gf. The switch includes a grounding pin for enhanced functionality.



Key specifications include an outline dimension of 7.30mm x 6.25mm and an actuator length of 6.15mm for right-angle mounting. The B3F-3150 is non-illuminated and has a switch function of Off-Mom (momentary). It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.

B3F-3150 Quick Information

Product Type: Tactile Switch
Canonical Name: Omron B3F-3150 Tactile Switch
Subcategory: Tactile Switch

B3F-3150 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B3F-3150 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

B3F-3150 Features

  • SPST-NO circuit configuration.
  • Rated for 0.05A at 24VDC.
  • Through Hole, Right Angle mounting.
  • Side actuated plunger for cap.
  • Includes grounding pin.

B3F-3150 Applications

  • Ideal for control panel interfaces.
  • Suitable for embedded system buttons.
  • Used in consumer electronics devices.
  • Applicable for test and measurement equipment.

B3F-3150 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the B3F-3150?

The operating temperature range is -25°C to 70°C.

What is the contact rating for the B3F-3150 switch?

The contact rating is 0.05A at 24VDC.

How is the B3F-3150 switch mounted?

The B3F-3150 switch is mounted Through Hole, Right Angle.

What is the circuit type of the B3F-3150?

The circuit type is SPST-NO.

Does the B3F-3150 have illumination?

No, the B3F-3150 is Non-Illuminated.

What is the Moisture Sensitivity Level (MSL) for the B3F-3150?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
