| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
853 pcs
|
853 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length, Right Angle | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

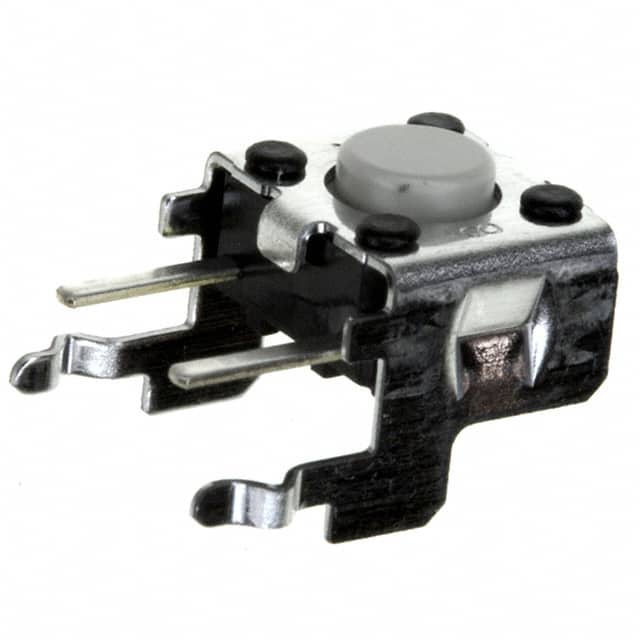

The Omron B3F-3100 is a tactile switch designed for electronic applications requiring a reliable momentary contact. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration, capable of handling 0.05A at 24VDC.
This switch is designed for Through Hole mounting with a Right Angle orientation, and its actuator is designed for side actuation. The operating force is specified at 100gf, and it operates within a temperature range of -25°C to 70°C. The switch has a standard actuator type and is non-illuminated.
Key mechanical dimensions include an outline of 7.30mm x 6.25mm, with an actuator length of 3.15mm for the right-angle configuration. The termination style is PC Pin, facilitating easy integration into circuit boards. The B3F-3100 also includes a grounding pin for added functionality.
This component is suitable for various applications where a compact and durable tactile switch is required. Its specifications make it a versatile choice for control interfaces and signal activation in electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Omron B3F-3100 features a SPST-NO circuit.
The contact rating is 0.05A at 24VDC.
The operating temperature range is -25°C to 70°C.
It is mounted Through Hole, Right Angle.
The termination style is PC Pin.
Yes, it features a grounding pin.
The operating force is 100gf.
