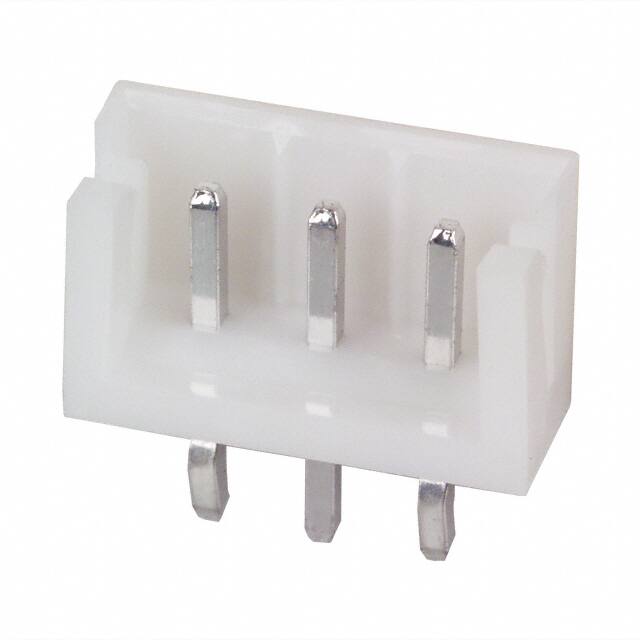

The JST B3B-EH-A(LF)(SN) is a 3-position, single-row rectangular header from the EH series. It features a 2.5mm pitch, through hole mounting, and a shrouded 3-wall design with friction lock for secure mating. The male pin contacts are made of brass with tin plating and have a square shape.
The insulator is made of polyamide (PA66) / Nylon 6/6 in natural color with a UL94 V-0 flammability rating. This header is rated for 3A nominal current and 250V nominal voltage, with an operating temperature range of -25°C to 85°C. Initial contact resistance is 10 mΩ maximum, insulation resistance is 1000 MΩ minimum, and it withstands 1000V AC for one minute.
The header accommodates AWG 28 to 22 wire with insulation diameters of 1.0 to 1.9 mm and is suitable for PC board thicknesses of 1.0 to 1.6 mm. It supports press-fit and solder termination styles.
The pitch is 2.5 mm.
It has 3 positions in a single row.
The nominal current rating is 3 A.
The nominal voltage rating is 250 V.
It uses through hole mounting with press-fit and solder termination.
