| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Delivery Mode | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Epoxy Resin Sealing Flammability | |
| Features | |
| Height | |
| High Reliability | |
| Lead Diameter | |
| Lead Length | |
| Lead Spacing | |
| Length | |
| Long Useful Life | |
| Low Losses | |
| Max Operating Temperature | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Over-Voltage Capability | |
| Plastic Case Flammability | |
| Self-Healing | |
| Tape & Reel | |
| Terminal Finish | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

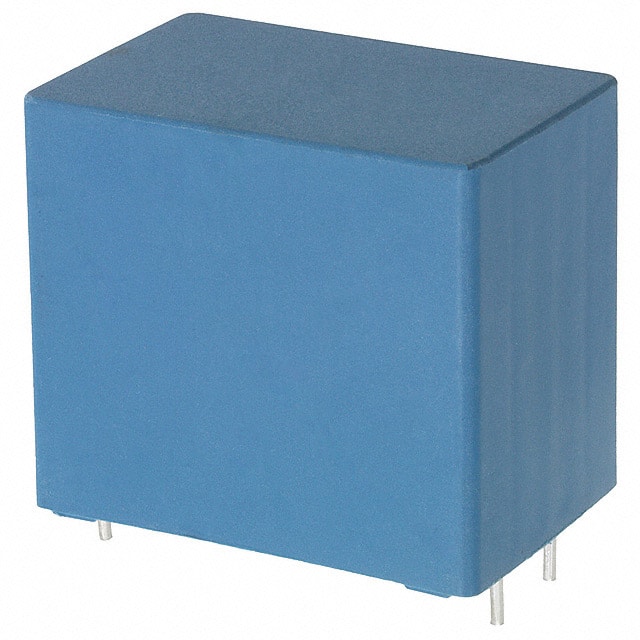

The TDK B32776G4506K000 is a metallized polypropylene film capacitor (MKP) designed for DC link and DC filtering applications. It provides a nominal capacitance of 50µF with ±10% tolerance and a rated DC voltage of 450V.
Key electrical characteristics include an extremely low equivalent series resistance (ESR) of 4 mΩ, enabling high current capability with low losses. The capacitor exhibits good self-healing properties and over-voltage capability, contributing to high reliability and long useful life.
Packaged in a radial through-hole case with 4 PC pin terminals, the component has a lead spacing of 37.5 mm and a lead diameter of 1.2 mm. The case and epoxy sealing are rated UL 94 V-0 for flame retardance. Operating temperature range is -40°C to 105°C with a climatic category of 40/105/56 per IEC 60068-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.69 | $18.69 |
| 10+ | $15.28 | $15.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 50 µF.
The rated DC voltage is 450V.
The dielectric is metallized polypropylene (PP).
The tolerance is ±10%.
It comes in a radial package with through-hole mounting and PC pin terminals.
