| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Flammability Rating | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Packaging Type | |
| SVHC Present | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

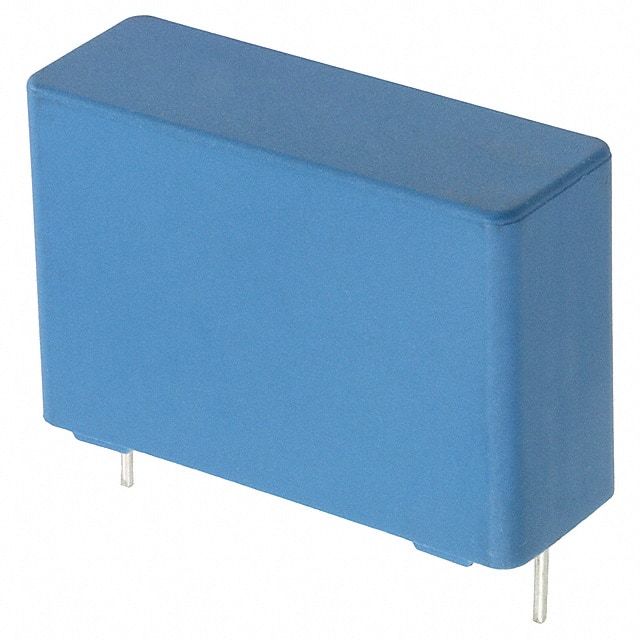

The B32774D1155K000 is a metallized polypropylene film capacitor (MKP) from TDK Electronics, part of the B32774 series designed for DC link applications. It offers a capacitance of 1.5µF with a tolerance of ±10% and a rated DC voltage of 1300V (1.3kV). The capacitor features a low equivalent series resistance (ESR) of 31.3 mΩ, contributing to efficient operation in high-frequency circuits.
This capacitor is constructed with a polypropylene dielectric and metallized electrodes, providing good self-healing properties and long life. It is housed in a plastic case with UL 94 V-0 flammability rating and epoxy resin sealing. The component is through-hole mounted with radial leads, featuring a lead spacing of 27.5mm and PC pin terminations. The dimensions are 31.5mm length, 12.5mm width, and 21.5mm height.
Typical applications include DC link circuits in frequency converters, industrial power supplies, and solar inverters. The operating temperature range is -40°C to 105°C, with a climatic category of 40/105/56 per IEC 60068-1. The capacitor is RoHS-compatible and has lead-free tinned terminals.
The packaging is bulk (untaped). This component is suitable for designs requiring high voltage DC link capacitance with reliable performance over a wide temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $2.44 | $2.44 |
| 50+ | $2.03 | $2.03 |
| 100+ | $1.90 | $1.90 |
| 525+ | $1.68 | $1.68 |
| 1,050+ | $1.62 | $1.62 |
| 2,625+ | $1.55 | $1.55 |
| 5,250+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 µF.
1300V DC (1.3kV).
Metallized polypropylene (PP).
±10%.
Radial through-hole package with PC pins and 27.5mm lead spacing.
-40°C to 105°C.
DC link and DC filtering in frequency converters, industrial power supplies, and solar inverters.
