Mfr Part #:

B32686S7224J564

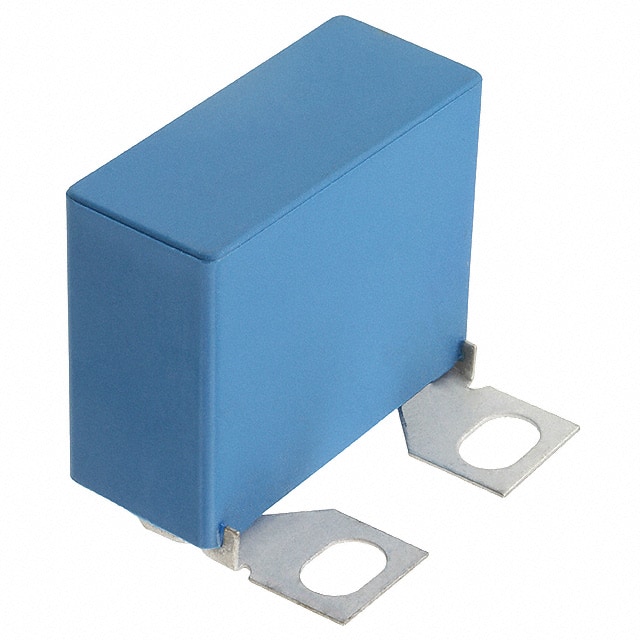

Name: B32686S7224J564
Brand: TDK Electronics
SKU: B32686S7224J564

Mfr Name: TDK Electronics

Description:

CAP FILM 0.22UF 5% 1.25KVDC SCRW

Stock on Request

B32686S7224J564 Description

Short technical summary and product information.

CAP FILM 0.22UF 5% 1.25KVDC SCRW

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

B32686S7224J565

TDK Electronics

CAP FILM 0.22UF 5% 1.25KVDC SCRW

B32686S7224J563

TDK Electronics

CAP FILM 0.22UF 5% 1.25KVDC SCRW

Category	Film Capacitors
Manufacturer Name	TDK Electronics
Applications	Snubber
Capacitance	0.22 µF
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	7 mΩ
Height	1.280" (32.50mm)
Lead Spacing	1.122" (28.50mm)
Mounting Type	Chassis Mount
Operating Temperature	-55°C ~ 100°C
Size	1.654" L x 0.709" W (42.00mm x 18.00mm)
Termination	Screw Terminals
Tolerance	±5%
Voltage Rating	1250V (1.25kV)
