| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

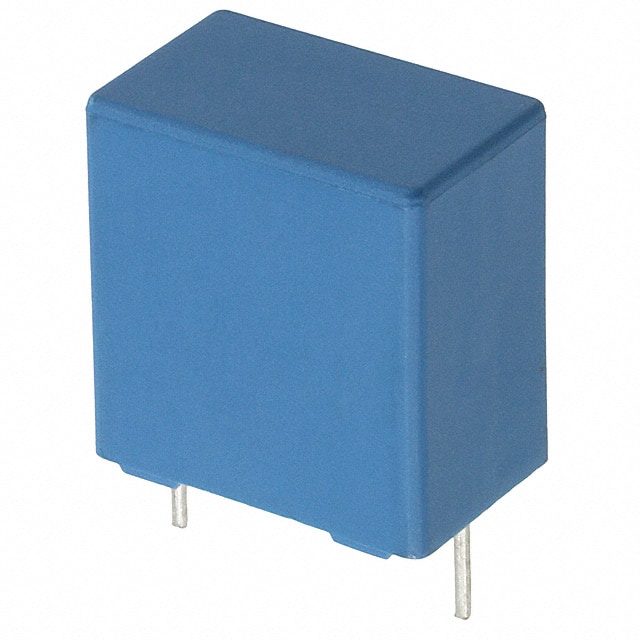

This is a film capacitor from TDK Corporation, part number B32672P4225K000. It offers a capacitance of 2.2 µF with a tolerance of ±10% and a voltage rating of 450 V DC. The dielectric is metallized polypropylene (PP), providing stable performance and low losses.
The capacitor is designed for power factor correction (PFC) applications and is qualified to AEC-Q200 standard for automotive reliability. It operates over a temperature range of -55°C to 125°C.
Packaged in a radial through-hole configuration with PC pins, the lead spacing is 15.00 mm. The dimensions are 18.00 mm length, 11.00 mm width, and 18.50 mm height. This form factor is suitable for automated insertion and manual assembly on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.49 | $2.49 |
| 10+ | $1.72 | $1.72 |
| 50+ | $1.41 | $1.41 |
| 100+ | $1.20 | $1.20 |
| 600+ | $1.13 | $1.13 |
| 2,100+ | $1.11 | $1.11 |
| 5,100+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µF.
450 V DC.
±10%.
Metallized polypropylene (PP).
Radial through-hole with PC pins, lead spacing 15.00 mm.
-55°C to 125°C.
Yes, it is rated AEC-Q200.
