| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Climatic Category | |
| Dielectric Material | |
| ESR (Equivalent Series Resistance) | |
| Features | |
| Flammability Rating | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Packaging Type | |
| Ratings | |
| Tape & Reel | |
| Terminal Finish | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Width |

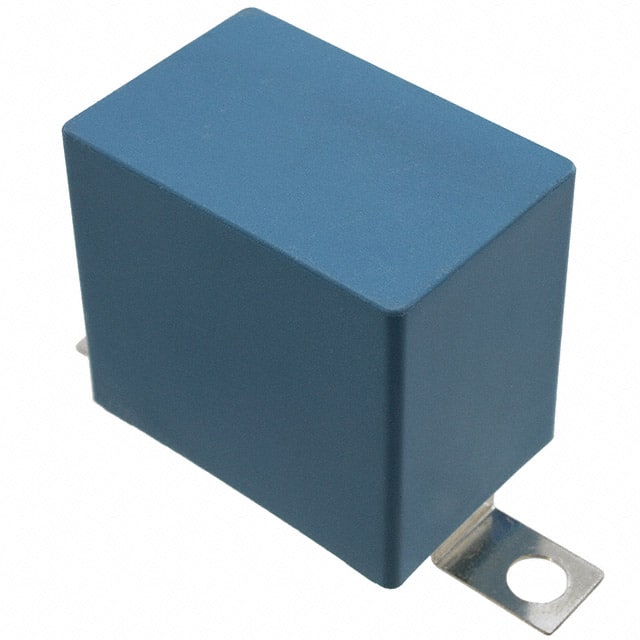

The TDK B32656S7105K563 is a wound metallized polypropylene (PP) film capacitor from the B32656S series. It is rated at 1 µF capacitance with ±10% tolerance and a DC voltage rating of 1250 V (1.25 kV) with an AC rating of 500 V. The capacitor is designed for snubber applications, offering low equivalent series resistance (ESR) of 6 mΩ and very low inductance (low ESL) for high pulse strength.
This capacitor uses screw terminals with tinned copper or brass strap leads, and a 57.00 mm lead spacing. The rectangular box case is made of plastic with UL 94 V-0 flammability rating and epoxy resin sealing. It supports an operating temperature range of -55°C to 100°C and meets climatic category 55/100/56 per IEC 60068-1.
The capacitor is RoHS-compatible (RoHS3 compliant as per datasheet) and is AEC-Q200 qualified on request. It is delivered in bulk packaging and is suitable for IGBT snubber circuits and other high-voltage DC snubbering needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.83 | $13.83 |
| 10+ | $10.05 | $10.05 |
| 48+ | $9.34 | $9.34 |
| 120+ | $9.08 | $9.08 |
| 504+ | $8.53 | $8.53 |
| 1,008+ | $8.33 | $8.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 µF (microfarad) with ±10% tolerance.
DC voltage rating 1250 V (1.25 kV) and AC voltage rating 500 V.
Metallized polypropylene (PP).
Chassis mount with screw terminals (strap style).
-55°C to 100°C.
