| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Halogen Free | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Maximum Operating Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

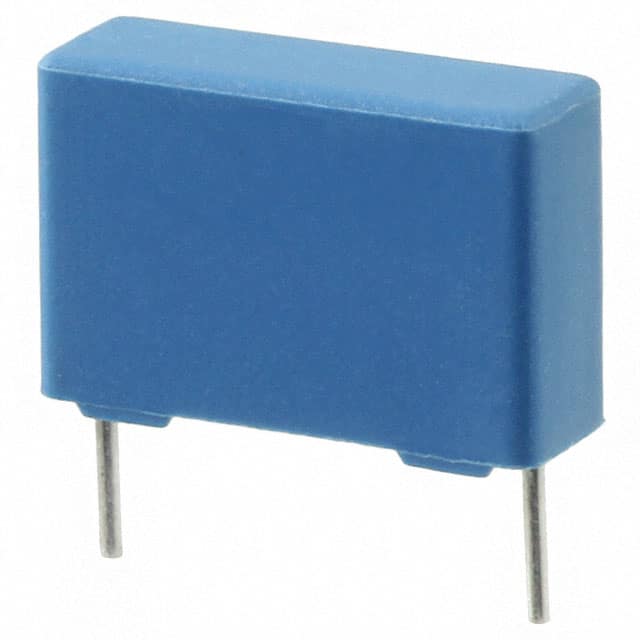

The B32642B6473J is a metallized polypropylene film capacitor from TDK Electronics, part of the B32642B series. It offers a capacitance of 0.047µF with a tolerance of ±5% and a rated DC voltage of 630V. The capacitor is designed for high-frequency applications such as DC link and DC filtering, as well as switching power supplies. It features a double-sided metallized polypropylene dielectric, providing high pulse strength and current withstand capability. The component is housed in a radial through-hole package with PC pin terminations and a lead spacing of 15.00mm. The dimensions are 18.00mm in length, 6.00mm in width, and 12.00mm in height. The operating temperature range is -55°C to 100°C, with a maximum operating temperature of 110°C. The capacitor is lead-free tinned and RoHS compliant (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.64 | $0.64 |
| 50+ | $0.50 | $0.50 |
| 100+ | $0.46 | $0.46 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.36 | $0.36 |
| 3,000+ | $0.33 | $0.33 |
| 5,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 0.047µF with a tolerance of ±5%.
The DC voltage rating is 630V. The AC voltage rating is 400V at frequencies up to 1kHz.
The dielectric is metallized polypropylene (PP).
The capacitor comes in a radial through-hole package with a lead spacing of 15.00mm.
The operating temperature range is -55°C to 100°C, with a maximum operating temperature of 110°C.
