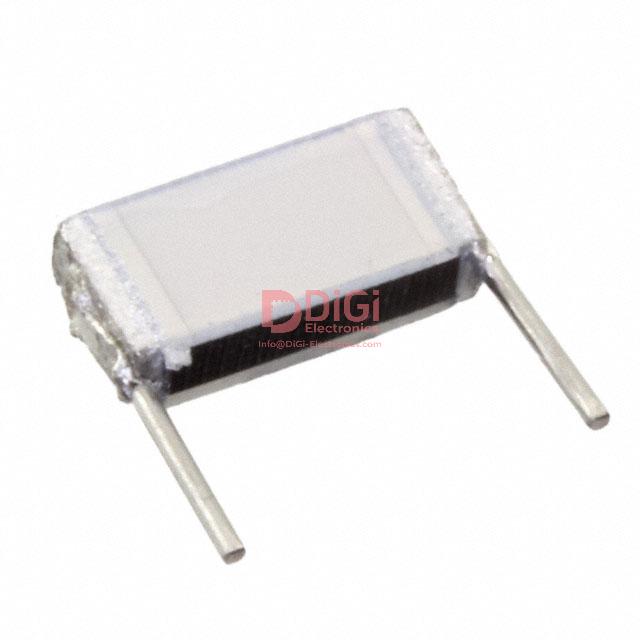

B32560J8102K289 The EPCOS B32560J8102K289 is a film capacitor with a capacitance of 1000 pF and a DC voltage rating of 630V. It features ±10% tolerance and is designed for Through Hole mounting.
Mfr Part #:

B32560J8102K289

Available from 1 distributors
Mfr Name: EPCOS
EPCOS
The EPCOS B32560J8102K289 is a film capacitor with a capacitance of 1000 pF and a DC voltage rating of 630V. It features ±10% tolerance and is designed for Through Hole mounting.
✓ Total Stock: 3,700 pcs
$ Price Range: $1.46

B32560J8102K289 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3,700 pcs
On Request
3700 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B32560J8102K289 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Dielectric Material
Failure Rate
Lead Spacing
Mounting Type
Operating Temperature
Tolerance
View Similar Products (0)

B32560J8102K289 Description

Short technical summary and product information.

The EPCOS B32560J8102K289 is a metallized stacked film capacitor from the B3256* - MKT SilverCap™ series. It offers a capacitance of 1000 pF with a tolerance of ±10% and is rated for a DC voltage of 630V and an AC voltage of 400V.



This capacitor operates within a temperature range of -55°C to 125°C. The dielectric material is Polyester, Polyethylene Terephthalate (PET), metallized - stacked. It is designed for Through Hole mounting and comes in a 2-DIP package.



This component is marked as 'Not For New Designs', indicating it may be older technology or superseded by newer parts. It is suitable for applications requiring stable capacitance and reliable performance within its specified voltage and temperature limits.

B32560J8102K289 Quick Information

Product Type: Film Capacitor
Series: B3256*
Canonical Name: EPCOS B32560J8102K289 Film Capacitor
Subcategory: Film Capacitor

B32560J8102K289 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B32560J8102K289 Estimated Pricing

Qty Low High
1+ $1.46 $1.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

B32560J8102K289 Features

  • 1000 pF capacitance with ±10% tolerance.
  • Rated for 630V DC and 400V AC.
  • Polyester, PET metallized stacked dielectric.
  • Operates from -55°C to 125°C.
  • Through Hole mounting in a 2-DIP package.

B32560J8102K289 Applications

  • Suitable for general purpose filtering.
  • Used in power supply circuits.
  • Applicable in signal coupling.
  • Ideal for resonant circuits.

B32560J8102K289 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the capacitance of the EPCOS B32560J8102K289?

The capacitance is 1000 pF.

What is the voltage rating for this film capacitor?

The voltage rating is 630V DC and 400V AC.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

What type of dielectric material does this capacitor use?

It uses Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked dielectric material.

How is the EPCOS B32560J8102K289 mounted?

It is mounted using the Through Hole method.
