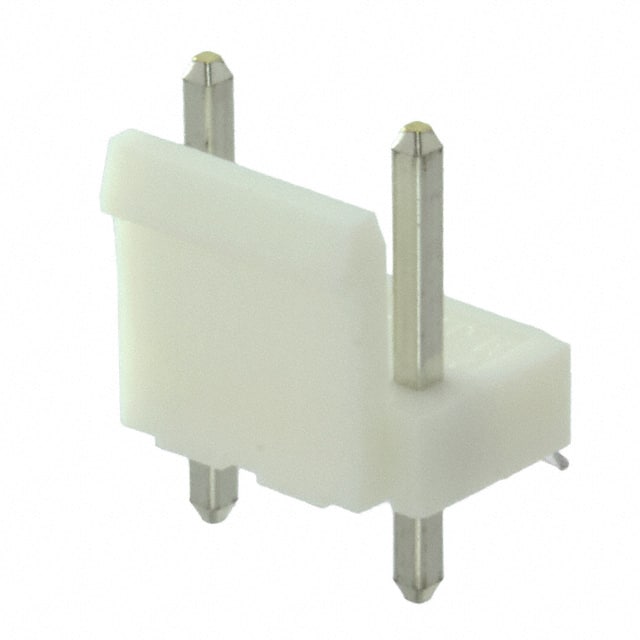

The JST B2P3-VH(LF)(SN) is a 2-position, single-row header with a 7.92mm pitch, designed for board-to-cable/wire connections. It features male square pins with tin plating, a brass contact material, and a shrouded housing with a locking ramp for secure mating. The header is through-hole mounted with solder termination, making it suitable for primary power supply circuits and other large current applications.
Electrical ratings include a current rating of 7A (AWG #18) and a voltage rating of 250V. Contact resistance is 10mΩ max initially and 20mΩ max after environmental tests, with insulation resistance of 1000MΩ min and dielectric withstanding voltage of 1200VAC/min. The operating temperature range is -25°C to 85°C.
The insulator is made of polyamide (PA66, Nylon 6/6) with UL94 V-0 flammability rating and natural color. The overall contact length is 14.60mm, with a mating contact length of 7.70mm and insulation height of 9.40mm. The recommended PCB thickness is 1.6mm. Packaging is 1000 pieces per box.
2 positions.
7.92mm.
7A (AWG #18).
250V.
Through hole.
-25°C to 85°C.
Initial 10mΩ max, after environmental tests 20mΩ max.
