| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,062 pcs
|
6062 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,062 pcs
|
6062 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

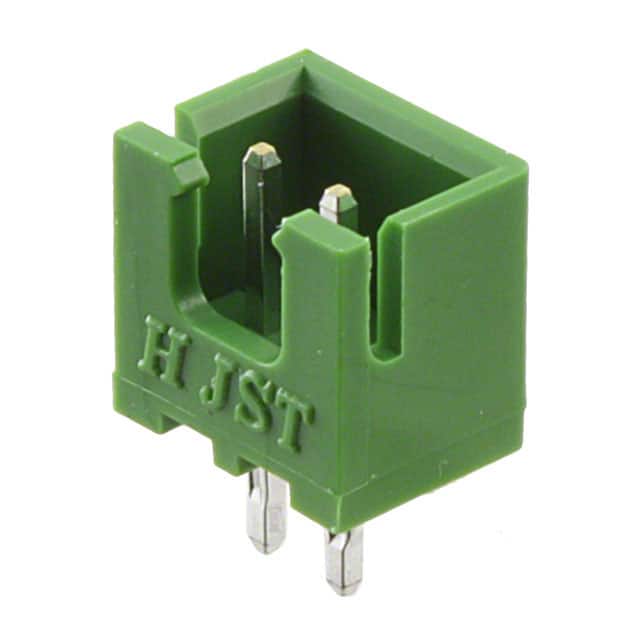

The JST B2B-XH-A-M(LF)(SN) is a 2-position, single-row, 2.5mm pitch shrouded header connector designed for board-to-cable/wire applications. This through-hole mount component features male pins with square contacts and a 4-wall shrouded housing for secure mating.
It is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The header uses a detent lock fastening mechanism and is made with brass contacts finished in tin, and a green polyamide (PA66/Nylon 6/6) insulator with UL94 V-0 flammability rating.
The B2B-XH-A-M(LF)(SN) is part of JST's XH series, known for its compact design and reliable connections. The shrouded 4-wall design provides protection and alignment during mating. It is suitable for various applications requiring a secure wire-to-board connection.
2 positions.
2.5mm (0.098 inches).
3A.
250V.
Through hole.
-25°C to 85°C.
Detent lock.
