| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
309 pcs
|
309 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
245 pcs
|
245 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

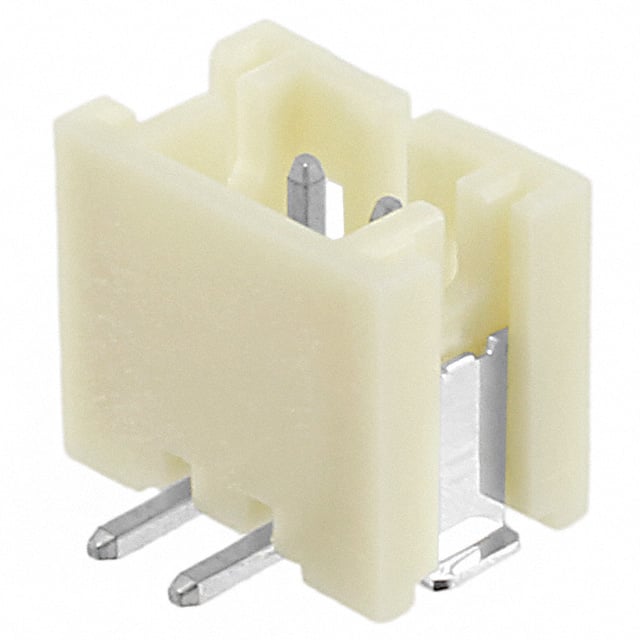

The JST B2B-PH-SM4-TBT(LF)(SN) is a 2-position, single-row header from the PH series, designed for board-to-cable/wire connections. It features a shrouded 4-wall design for mechanical protection and a detent lock for secure mating. The surface mount termination includes pick-and-place and solder retention features, making it suitable for automated assembly.
The connector has a 2.00mm pitch, ideal for high-density PCB layouts. Male pin contacts are copper alloy with tin finish, rated at 2A and 100V. The natural-colored polyamide (PA6T/Nylon 6T) insulation carries a UL94 V-0 flammability rating. Operating temperature range is -25°C to 85°C.
Typical applications include board-to-wire interconnections in compact consumer electronics, industrial controls, and other space-constrained environments requiring a reliable, locking connector.
This header has 2 positions, all loaded.
The pitch is 2.00mm.
The current rating is 2A per contact.
The voltage rating is 100V.
Surface mount with solder termination.
-25°C to 85°C.
Polyamide (PA6T), Nylon 6T with UL94 V-0 rating.
