| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,598 pcs
|
11598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,718 pcs
|
1718 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,238 pcs
|
1238 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
675 pcs
|
675 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

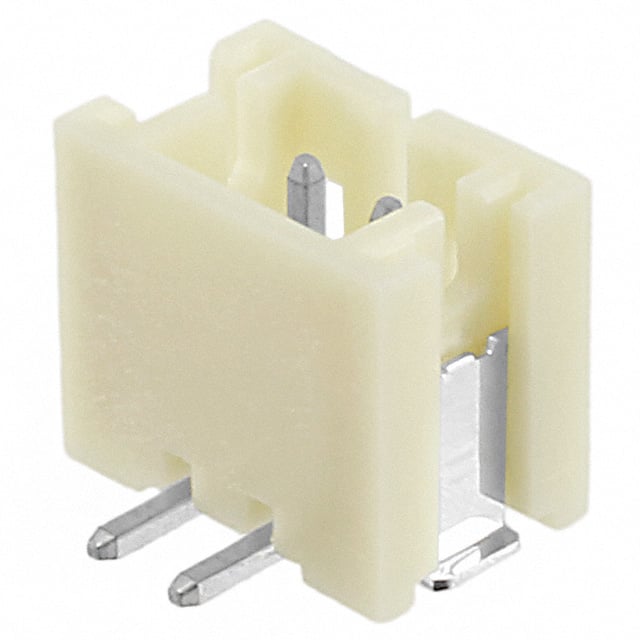

The JST B2B-PH-SM4-TB(LF)(SN) is a 2-position, single-row shrouded header from the PH series. It features a 2.00mm pitch and male square pins with tin plating. The header is designed for surface mount soldering and includes a detent lock for secure mating with cable assemblies.
This connector is rated for 2A current and 100V, with an operating temperature range of -25°C to 85°C. The insulation is made of polyamide (PA6T) in natural color, with a UL94 V-0 flammability rating. The header includes solder retention features for reliable PCB mounting.
Ideal for board-to-cable/wire applications where space is limited, the PH series offers a low-profile design with a mounting height of 6.60mm. The shrouded 4-wall design protects the contacts and provides polarization for correct mating.
The pitch is 2.00mm.
It has 2 positions.
The current rating is 2A.
The voltage rating is 100V.
It is surface mount (SMT).
-25°C to 85°C.
Yes, it is listed as RoHS3 compliant.
