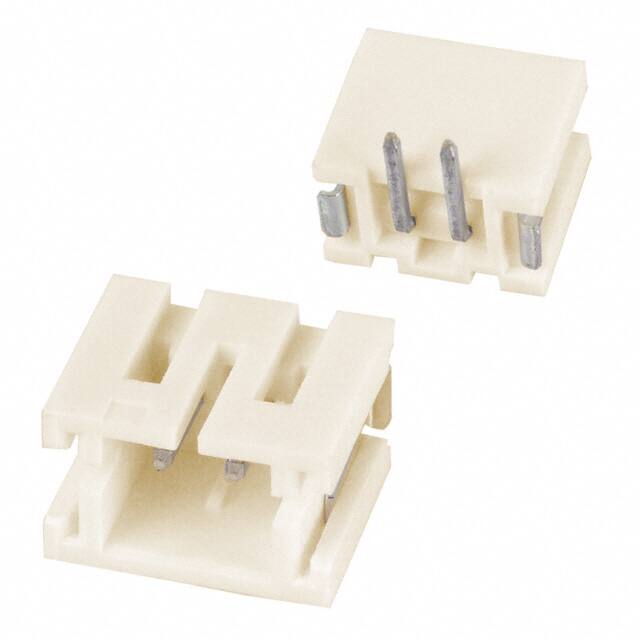

The JST B2B-PH-SM3-TB is a 2 position single row surface mount shrouded header from the PH series. It features a 2.00mm pitch and is designed for board to cable/wire connections. The connector has a fully shrouded 4 wall design to prevent improper mating and protect against flux and contaminants. This header is rated for 2A of current and 100V AC/DC. Contact resistance is 10 mΩ maximum initial and 20 mΩ maximum after environmental testing. Insulation resistance is 1000 MΩ minimum and withstanding voltage is 800V AC for 1 minute. The header is made with a copper alloy contact material finished with Tin-Lead and a polyamide (PA46) Nylon 4/6 insulator rated UL94 V-0. It operates over a temperature range of -25°C to 85°C. The surface mount configuration with solder retention features allows for accurate placement and reliable soldering. The applicable PC board thickness is 0.8mm to 1.6mm.
| Qty | Low | High |
|---|---|---|
| 1,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm (0.079 inches).
The current rating is 2A.
The voltage rating is 100V.
It is a surface mount (SMD) connector.
It has 2 positions, all loaded in a single row.
The operating temperature range is -25°C to 85°C.
RoHS compliance is unverified with conflicting data. JST offers lead-free options upon request.
