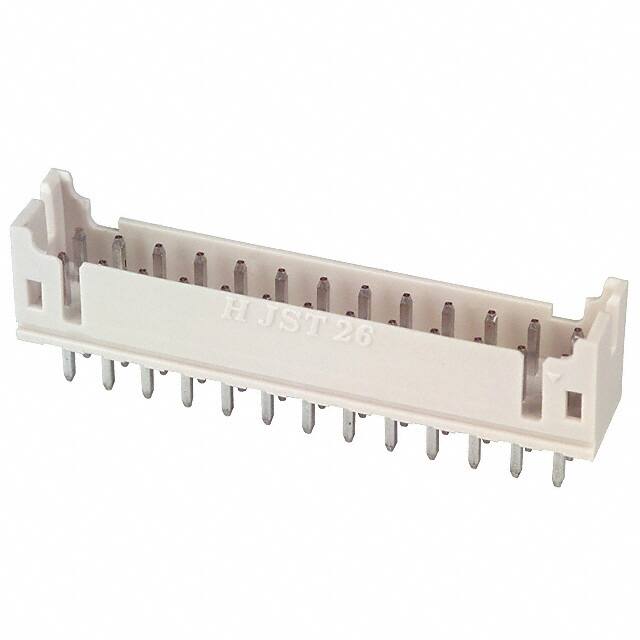

The JST B26B-PHDSS(LF)(SN) is a 26-position, 2-row shrouded header from the PHD series. It features male square pins with tin finish, designed for through-hole mounting. The connector supports board-to-cable/wire applications.
Key electrical specifications include a current rating of 3A and voltage rating of 250V. The contact material is copper alloy with tin plating. The insulation is polyamide (PA) nylon, glass-filled, with a natural color and UL94 V-0 flammability rating.
The shrouding provides 4-wall protection, and the detent lock ensures secure mating. The operating temperature range is -25°C to 85°C. Overall dimensions include an insulation height of 6.50mm, contact length of 2.90mm, and overall contact length of 7.40mm.
26 positions in a dual-row configuration.
2.00 mm
3 A
250 V
Through hole
-25°C to 85°C
Tin
