Mfr Part #:

B24B-PHDSS(LF)(SN)

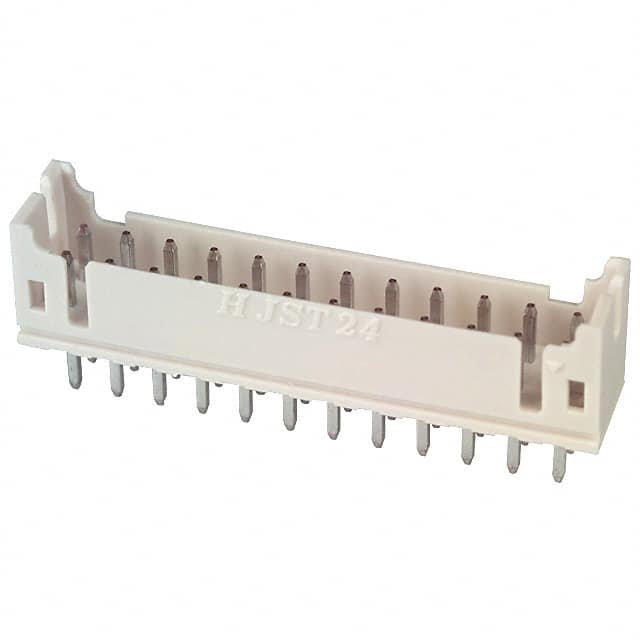

Name: B24B-PHDSS(LF)(SN)
Brand: JST Sales America
SKU: B24B-PHDSS(LF)(SN)

Mfr Name: JST Sales America

Description:

CONN HEADER VERT 24POS 2MM

Stock on Request

B24B-PHDSS(LF)(SN) Description

Short technical summary and product information.

CONN HEADER VERT 24POS 2MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	JST Sales America
Connector Type	Header
Contact Finish	Tin
Contact Length	0.114" (2.90mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.256" (6.50mm)
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-25°C ~ 85°C
Overall Contact Length	0.291" (7.40mm)
Pitch	0.079" (2.00mm)
Row Spacing	0.079" (2.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250V
