| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
165 pcs
|
165 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Protection |

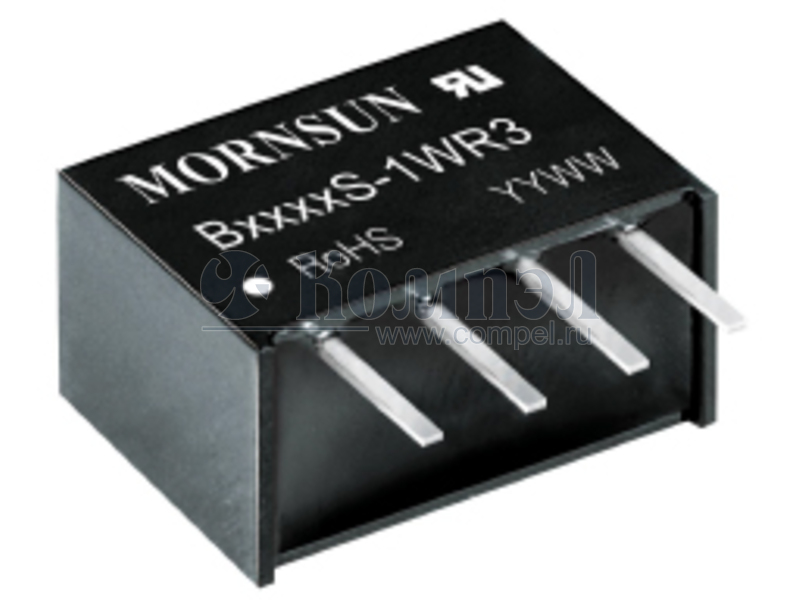

The Mornsun B2405S-1WR2 is an unstabilized DC-DC converter module designed for power conversion applications. It delivers 1W of output power, with a nominal input voltage of 24V (ranging from 21.6V to 26.4V) and a single output of 5V at 200mA.
Key features include a 1.5 kV DC isolation voltage between input and output, and built-in short circuit protection for enhanced reliability. The operating temperature range is -40°C to 105°C, making it suitable for various environmental conditions.
This converter is housed in a compact SIP4 package. The standard package quantity is 43 units, typically supplied in linear carriers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output power is 1 W.
The nominal input voltage is 24 V.
The input voltage range is 21.6 to 26.4 V.
The output voltage is 5 V and the output current is 200 mA.
The isolation voltage between input and output is 1.5 kV DC.
The operating temperature range is -40 to 105 °C.
Yes, it has short circuit protection.
