| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | 06+10 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Mounting Type | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Technology |

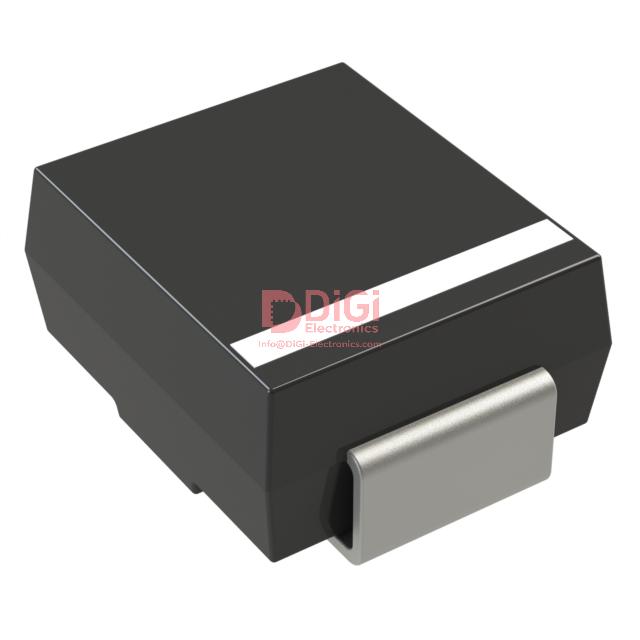

The Diodes Incorporated B240-13-F is a Schottky rectifier designed for efficient rectification applications. It features a maximum reverse voltage of 40V and an average rectified current of 2A.
This rectifier exhibits a fast recovery speed of less than 500ns for currents over 200mA, with a typical forward voltage of 500mV at 2A. The reverse leakage current at 40V is 500µA, and its capacitance is 200pF at 4V and 1MHz.
Packaged in a surface-mount SMB (DO-214AA) case, the B240-13-F is suitable for automated assembly processes. It operates within a junction temperature range of -65°C to 150°C, making it robust for various environmental conditions. Its Schottky technology ensures low forward voltage drop and high switching efficiency.
This component is ideal for use in power supplies, voltage clamping, and reverse polarity protection circuits where high efficiency and fast response are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) for the B240-13-F is 40V.
The average rectified current (Io) for the B240-13-F is 2A.
The maximum forward voltage (Vf) at 2A for the B240-13-F is 500mV.
The operating junction temperature range for the B240-13-F is -65°C to 150°C.
The B240-13-F is a Schottky rectifier.
The B240-13-F is supplied in a surface mount SMB (DO-214AA) package.
